The Zebra WS501-R is a mobile computing family. This MOD record is best handled as a family-level reference; verify the final orderable Zebra part number before publishing configuration-specific specifications.
Select model
Description

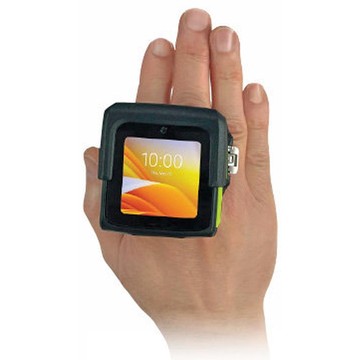

The Zebra WS501-R is a hands-free UHF RFID wearable mobile computer designed for task workers in warehousing, manufacturing, transportation, and logistics environments where speed, accuracy, and continuous operation are essential. Worn on the finger or back of hand, it combines integrated UHF RFID reading at up to 1.5 m range with an SR560 1D/2D imager, enabling RFID tag reads and barcode scans within a single compact device. Running Android 14 on a Qualcomm QCS2290 quad-core 2.0 GHz processor with 3 GB RAM and 32 GB storage, the WS501-R supports demanding enterprise applications. Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO and Bluetooth 5.3 deliver fast, reliable wireless connectivity, while IP65 sealing and MIL-STD-810G ratings on select configurations ensure durability across harsh conditions. A hot-swappable 2400 mAh battery supports uninterrupted shift operations.
Documents
fefbd6b4c6c196dfc2dddb548eb21130.pdf MOD-WS501-R
mod-ws501-r-zebra-weareable-user-manual.pdf MOD-WS501-R
FAQs
What data capture technologies does the Zebra WS501-R RFID Wearable support?
The WS501-R combines UHF RFID reading at 900 MHz (865–868 MHz in EMEA) with an SR560 1D/2D imager for barcode scanning, enabling simultaneous RFID and barcode data capture in a single wearable device.
What wireless connectivity options are built into the Zebra WS501-R?
The device includes Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO and Bluetooth 5.3, with NFC also supported on this configuration.
What compute platform and operating system does the Zebra WS501-R run?
It runs Android 14 on a Qualcomm QCS2290 quad-core 2.0 GHz processor, backed by 3 GB RAM and 32 GB of internal flash storage.
How does the Zebra WS501-R handle battery life during extended shifts?
The WS501-R uses a 2400 mAh hot-swappable, removable battery, allowing workers to replace the battery without powering down the device, and it supports Hot Swap mode with memory persistence when the battery is swapped within two minutes.
What wearing styles and mounting options are available for the Zebra WS501-R?
The device supports finger mount, back-of-hand mount, and wrist mount configurations, and the trigger assembly can be repositioned to accommodate both right-handed and left-handed users.
What comes in the box with the Zebra WS501-R, and what charging accessories are available?
The box includes the WS501 RFID device with a 2400 mAh battery, a choice of mounting option (finger mount, back-of-hand mount, or wrist mount), and a Regulatory Guide. Compatible charging accessories sold separately include a USB charge cable, 2-slot and 10-slot charge-only cradles, and 4-slot and 20-slot battery chargers for the 2400 mAh battery.
