Zebra

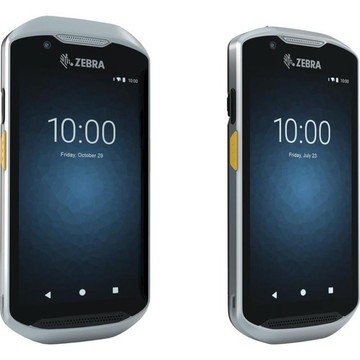

Zebra TC52ax-HC Healthcare Mobile Computer WiFi 6, SE4720, 4/64GB, 5" Full HD, 4150 mAh, 7 Pin

SKU:

TC520L-1HCMH7P-NA

With Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax) and 4 GB RAM paired with 64 GB of flash storage, the Zebra TC520L-1HCMH7P-NA is configured for clinical environments where wireless density and data throughput matter. The SE4720 imager handles 1D and 2D barcodes across a standard range using white LED illumination, supporting scanning on curved surfaces such as medicine vials. A Snapdragon 660 octa-core processor running at 2.45 GHz drives the 5-inch Full HD 1920 x 1080 LED display at 600 nit brightness, with multi-touch input functional when wet or with gloved hands. The 13 MP rear camera with Phase Detection Autofocus and 5 MP front camera support documentation and remote collaboration. Bluetooth 5.1, NFC, and USB round out connectivity, while the removable 4150 mAh Li-Ion battery supports hot-swap operation. The chassis measures 6.1 in tall, 2.9 in wide, and 0.7 in deep, weighing 9.14 oz with battery, and carries an IP65 ingress rating alongside drop tolerance of multiple 4 ft./1.2 m drops to tile over concrete. Android 11 is upgradable to Android 14, Google Mobile Services are included, and TAA compliance and a one-year limited warranty apply.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra TC52ax Mobile Computer is a rugged, enterprise-grade handheld designed for fast, accurate data capture across retail, logistics, field service and healthcare environments. Combining a 5.0-inch Full HD, outdoor-viewable touchscreen with Qualcomm Snapdragon performance and Android 11, the device supports demanding mobile applications, barcode imaging (SE4720 standard, SE5500 optional), and flexible connectivity including Wiā€‘Fi 6, Bluetooth and NFC. Robust sealing (IP65/IP68), MILā€‘STDā€‘810G durability and disinfectant-ready materials on healthcare variants help minimize downtime in intensive workflows, while on-shift battery options, hot-swap support and ample flash storage deliver practical benefits for teams that require secure, reliable and long-lasting mobile computing.

Key Features

  • Enterprise performance: Qualcomm Snapdragon octa-core platform with 4 GB RAM and responsive Android 11 for multi-app workflows and reliable processing.
  • Advanced data capture: Integrated SE4720 1D/2D imager (SE5500 optional) for fast, accurate barcode scanning in short and extended-range configurations.
  • Modern connectivity: Wiā€‘Fi 6 (802.11 a/b/g/n/ac/ax), 2x2 MUā€‘MIMO plus Bluetooth and NFC for low-latency, secure connections across busy networks.
  • Rugged, disinfectant-ready design: IP65/IP68 ingress protection, MILā€‘STDā€‘810G durability and healthcare-grade materials on select models to withstand cleaning with approved disinfectants and UVā€‘C appliances.
  • Shift-ready power: High-capacity PowerPrecision battery options (examples: 4150 mAh and 4100 mAh variants) with hot-swap capability in supported configurations to maintain full-shift productivity.

Specifications

  • Brand: Zebra
  • Product Name: Zebra TC52ax Mobile Computer
  • Category: Handheld Computers
  • Operating System: Android 11 (GMS)
  • Processor: Qualcomm Snapdragon 660 (octa-core)
  • CPU Frequency: 2.45 GHz
  • Memory (RAM): 4 GB
  • Flash Storage: 64 GB
  • Display Size: 5.0 in.
  • Display Resolution: 1920 x 1080
  • Display Type: Full HD, optically bonded, outdoor viewable
  • Imager / Scan Engine: SE4720 (standard); SE5500 (advanced range, optional)
  • Connectivity: 802.11 a/b/g/n/ac/ax (Wiā€‘Fi 6), 2x2 MUā€‘MIMO, Bluetooth 5.0/5.1, BLE, NFC
  • Battery Capacity: 4150 mAh; 4100 mAh (depending on variant)
  • Battery Type: PowerPrecision+ (rechargeable, hotā€‘swappable where supported)
  • Rear Camera: 13 MP
  • Front Camera: 5 MP
  • Ingress Protection Rating: IP65; IP68
  • Military Standard: MILā€‘STDā€‘810G
  • Drop Rating: 4 ft (1.2 m) to tile; multiple 6 ft drops with rugged boot accessory (varies by configuration)
  • Dimensions: 6.1 x 2.9 x 0.73 in (75.5 x 155ā€“163.7 x 18.6 mm depending on variant)
  • Weight: 9.1 oz / 249ā€“266 g (varies by configuration)
  • Security Certification: FIPS 140-2 (on supported healthcare/security variants)
  • Materials / Chemical Compatibility: Supports cleaning with over 30 approved chemical disinfectants and compatible with UVā€‘C appliances (healthcare variants)

Main Features

  • Operating System: Android

  • Rugged: Commercial

  • Connection: Bluetooth, USB

  • Scan Range: Standard Range

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4720
Image Sensor Type Imager
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Proximity
  • Gyroscope
  • eCompass
Brightness 600 Nit
Features
  • Water Resistant
  • Gorilla Glass
  • Push-to-talk
Drop Specification

Multiple 4 ft./1.2 m drops to tile over concrete over 14Ā° F to 122Ā° F/-10Ā° C to 50Ā° C
Illumination Type LED
Illumination Color White
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.45 GHz
Memory
Standard Memory 4 GB
Flash Memory 64 GB
Memory Card Supported
  • SDXC
  • microSD
Display & Graphics
Screen Size 5"
Screen Mode Full HD
Screen Resolution 1920 x 1080
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Keyboard/Keypad
Buttons & Keys

Six programmable buttons for maximum flexibility: Alert button, dual dedicated scan buttons, dedicated push-to-talk button and volume up/down buttons
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.1
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 11
Upgradable Operating System Android 14
Power Description
Power Source Battery
Battery Information
Battery Capacity 4150 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature -4Ā°F (-20Ā°C) to 122Ā°F (50Ā°C)
Storage Temperature -40Ā°F (-40Ā°C) to 158Ā°F (70Ā°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Phone-size
Rugged Yes
Height 6.1"
Width 2.9"
Depth 0.7"
Weight (With Battery) 9.14 oz
Miscellaneous
Ingress Protection (IP) Rating IP65
TAA Compliant Yes
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the TC52x-HC and TC52ax-HC are warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit:

www.zebra.com/warranty
Documents
ico-plus ico-minus
Product document mod-tc52ax-zebra-handheld-terminals-datasheet.pdf TC520L-1HCMH7P-NA  (PDF) Product document mod-tc52ax-zebra-handheld-terminals-user-manual.pdf TC520L-1HCMH7P-NA  (PDF)
