Zebra

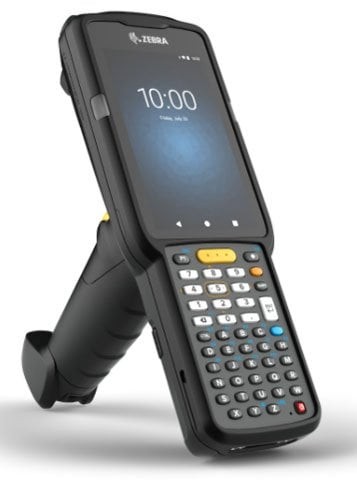

Zebra MC3300ax Handheld Computer Wi-Fi 6, Extended Battery, Rugged, Standard-Range 2D Imager, 4 GB RAM, 32 GB Flash

SKU:

MC330X-GJ4EG4NA

The MC330X-GJ4EG4NA ships with a 7000 mAh Li-Ion extended capacity battery — removable, rated at 3.60 V, and rechargeable in 5 hours — giving this gun-style handheld the runtime to support extended multi-shift deployments in warehouse, distribution, manufacturing, and retail environments. The SE4770 imager reads 1D and 2D barcodes at standard range to 24 inches, while the Qualcomm Snapdragon 660 octa-core processor at 2.20 GHz, 4 GB RAM, and 32 GB Flash handle demanding applications, with microSD, SDHC, and SDXC expansion available. Wireless connectivity runs on IEEE 802.11 a/b/g/n/ac/ax with Bluetooth 5.1 BLE and NFC, and the 4-inch WVGA LED touchscreen at 800 x 480 pairs with a 47-key alphanumeric keypad. The 1.18 lb chassis meets IP64 sealing, survives multiple 6 ft./1.8 m drops to concrete per MIL-STD-810G and 3,000 tumbles at 3.3 ft./1 m, and operates from -4°F (-20°C) to 122°F (50°C). Android 11 is upgradable to Android 14, and Google Mobile Services are included. The unit is RoHS and REACH compliant and carries a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra Wi‑Fi PowerTrack MCax is a rugged family of handheld mobile computers engineered for demanding warehouse, distribution, retail backroom and field-service workflows. Built on an Android platform with Google Mobile Services, the series delivers enterprise-grade Wi‑Fi 6 connectivity, robust Bluetooth and NFC support, and versatile data-capture options—ranging from standard-range to long-range 2D imagers—to accelerate inventory, receiving and asset-tracking tasks. Available in gun, full-size brick and pistol-optional form factors, MCax devices combine extended-capacity batteries, tactile keypads and industrial sealing to maximize uptime, simplify integration with existing systems and sustain productivity across multi-shift operations.

Key Features

  • Enterprise Wi‑Fi 6: 802.11 a/b/g/n/AX support (with 2x2 MU‑MIMO on select SKUs) for higher throughput and reliable connectivity in congested environments.
  • Flexible data capture: Choice of high-performance imagers (SE4770, SE485x) including long- and extended-range 2D scanning to handle diverse barcode distances and print qualities.
  • Rugged and ergonomic designs: Gun, full-size brick and pistol-configurable form factors with IP64 sealing, Gorilla Glass protection and drop/tumble ratings for harsh operational use.
  • All‑day power options: Extended-capacity and 7000 mAh battery variants (BLE-enabled on select models) to reduce downtime and support long shifts.
  • Enterprise-ready Android: Android with Google Mobile Services (GMS), prelicensed Enterprise Browser on some SKUs and upgradeable OS options for secure app deployment and management.

Specifications

  • Brand: Zebra
  • Platform / Operating System: Android with Google Mobile Services (GMS); some SKUs upgradeable to Android 14
  • Processor: Snapdragon 660, up to 2.2 GHz octa-core
  • RAM: 4 GB
  • Storage (Flash / ROM): 32 GB
  • Display: 4.0 in (800 x 480 on selected SKUs)
  • Keypad / Key Counts: Options include 38-key and 47-key (alphanumeric / functional numeric)
  • Form Factors: Gun, Full-size (brick) and pistol-option capable
  • Scanner Models / Types: SE4770 (2D long/standard range), SE485x (2D long/extended range)
  • Maximum Scan Range: Up to 70 ft (selected long-range SKU)
  • Wireless Standards: 802.11 a/b/g/n/AX (Wi‑Fi 6); 2x2 MU‑MIMO on select models
  • Bluetooth: Yes (including Bluetooth 5 / 5.1 on select SKUs)
  • NFC: Yes
  • Connectivity: Wi‑Fi 6, Bluetooth, USB / USB‑A (varies by model)
  • Battery: Extended-capacity options; 7000 mAh available on select SKUs (BLE battery variants noted)
  • Ingress Protection: IP64
  • Drop / Tumble: Drop: 6 ft / 1.8 m (typical); Tumble: 3000 tumbles on select SKUs
  • Touch Protection: Corning Gorilla Glass on selected models
  • Weight: Approximately 2 lbs on selected SKUs
  • Sensors: Built-in sensors present (model-dependent)

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Battery Capacity: Extended

  • Screen size: 7 inch

  • IP Rating: IP64

  • Range: Standard Range

  • Connection: Bluetooth, USB

  • Keyboard: 47 Key Alpha Numeric

  • Camera: None

  • Included Battery: Yes

  • Battery Features: BLE Battery

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4770
Image Sensor Type Imager
Scanner Range Standard Range
Scanning Distance 24"
Google Mobile Services (GMS) Yes
Sensor Type
  • Accelerometer
  • Gyroscope
  • Motion Sensor
Features
  • Gorilla Glass
  • Water Resistant
  • Push-to-talk
Drop Specification

Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G
Processor & Chipset
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • SDHC
  • SDXC
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Color Color
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 47
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.1 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Software
Operating System Android 11
Upgradable Operating System Android 14
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Maximum Battery Recharge Time 5 Hour
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Width 2.9"
Depth 8"
Weight (Approximate) 1.18 lb
Miscellaneous
Application/Usage
  • Warehouse
  • Distribution
  • Manufacturing
  • Retail
Ingress Protection (IP) Rating IP64
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the MC3300ax is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:

http://www.zebra.com/warranty
Documents
ico-plus ico-minus
Product document mc3300ax.pdf MC330X-GJ4EG4NA  (PDF)
