Wasp 633809008351 Presentation Readers

SKU:

633809008351

Barcode Scanners, Wasp WPS1500, Corded, Omni-Directional, Decodes 1D and 2D codes, USB Keyboard, Black, 1MP optics, Green spot technology. Kit Includes: Barcode Scanner With Integrated Stand, USB Cable and Scanner Programming Guide
Description
ico-plus ico-minus

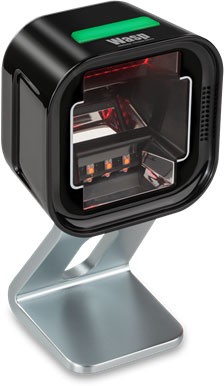

Wasp WPS1500 Omni-Directional Barcode Scanner is designed for high-performance data collection in various environments, from retail points of sale to healthcare and warehouse settings. This versatile scanner boasts an omnidirectional scan capability, enabling it to efficiently read popular 1D and 2D barcodes, including mobile coupons and loyalty cards. With its advanced 1MP optics and green spot technology for good-read feedback, the WPS1500 enhances productivity and streamlines operations.

Key Features
  • High-performance, omnidirectional scan pattern for increased productivity
  • Ideal for retail POS, warehouse applications, healthcare, and commercial services
  • Scans 1D and 2D barcodes on printed labels, mobile coupons, loyalty cards, tickets, and boarding passes
  • Omnidirectional code reading capability
  • 1MP optics for excellent performance with mobile devices
  • Green spot technology provides good-read feedback

Specifications
  • Optics & Performance:
    • Image Capture: 1 Megapixel (1280 x 800 pixels)
    • Scan Angle: Pitch +/- 65°; Roll 360°; Skew +/- 75°
    • Print Contrast Ratio: 25%
  • Physical Characteristics:
    • Dimensions: Tilting Riser - 6.0 x 7.5 x 13.8 cm (2.4 x 3.0 x 5.4 in)
    • Weight: Tilting Stand - 240 g (8.5 oz)
    • Color: Black & White
  • Electrical:
    • Input Voltage: 5 VDC +/- 10%
    • Working Current: <500 mA
  • User Environment:
    • Operating Temperature: 0 to 40 °C (32 to 104 °F)
    • Humidity: 5%~95% (Non-condensing)

Main Features

  • Rugged: Industrial

  • Connection: Serial, USB

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

Symbologies:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes. Aztec Code; Data Matrix; MaxiCode; QR Code. Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code; (RM4SCC); Swedish Post; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; optional support for Digimarc Barcodes/GS1 DW Code
Light Source LED
Scan Pattern Omni-directional
Scanning Distance 11.80"
Features
  • Beep
  • Notification LED
Cable Type Included USB
Stand Included Yes
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 86100 lux
Drop Specification

4.0 ft. (1.2 m)
Minimum Print Contrast 25%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 13 mil
Maximum Element Resolution (DataMatrix) 24 mil
Minimum Element Resolution (PDF417) 6.5 mil
Maximum Element Resolution (PDF417) 16 mil
Image Sensor Resolution 1280 x 800
Interfaces/Ports
Host Interface
  • USB
  • IBM 46XX
  • Serial
Environmental Conditions
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Hands-free
Rugged Yes
Color Family Dual Color
Product Color
  • Black
  • White
Durability
  • Drop Resistant
  • Dust Resistant
  • Water Resistant
Miscellaneous
Package Contents
  • Wasp WPS1500 Omni-Directional Barcode Scanner with integrated stand
  • USB cable
  • Scanner programming guide
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Warehouse
  • Healthcare
  • Commercial Service
  • Loyalty Program
  • Ticketing
  • Self-checkout
  • Assembly Line
  • Packing
  • Laboratory
  • Pharmacy
Platform Supported
  • Smartphone
  • Tablet
  • PC
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document wps1500.pdf MOD-WASP-WPS1500-OMNI-DIRECTIONAL
