ViewSonic
ViewSonic IFP8650-E2 Accessories
SKU:
IFP8650-E2

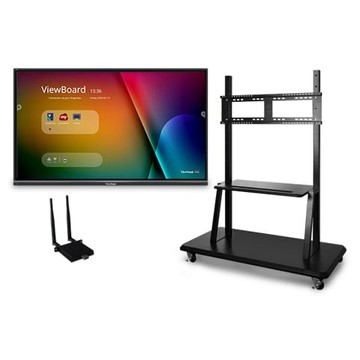

Touchscreens, ViewSonic IFP8650-E2, ViewBoard IFP8650-E2 bundle includes the following items:- ViewBoard IFP8650 4K Interactive display (UPC766907900415 / Serial UZUYYWWnnnnn/V34YYWWnnnnn/WAFYYWWnnnnn/W9LYYWWnnnnn)- LB-Wi-Fi-001 Wireless AC adapter (UPC 766907910117 / Serial V1LYYWWnnnnn) or VB-Wi-Fi-001 (UPC766907013566 / Serial WM0YYWWnnnnn)- VB-STND-001 Mobile trolley cart (UPC 766907947618 / Serial V8KYYWWnnnnn)
Description
The ViewSonic ViewBoard Interactive series brings collaboration to life with its stunning 4K resolution and multi-touch capabilities. Whether in a classroom or conference room, these interactive touchscreen displays foster engagement and creativity. With various screen sizes from 43" to 98", each model supports seamless connectivity, making presentations and brainstorming sessions vibrant and intuitive. The embedded media player allows for standalone operations, ensuring a smooth and interactive user experience.
Key Features
Specifications
Key Features
- Multiple Sizes: Available in sizes ranging from 43" to 98", suitable for any space.
- High Resolution: 3840 x 2160 4K Ultra HD for crisp visuals.
- Multi-Touch Capability: Up to 20 touch points for a collaborative experience.
- Embedded Media Player: Built-in for standalone operation without a PC.
- Extensive Connectivity: HDMI, DisplayPort, USB, and Ethernet options available.
Specifications
- Screen Sizes:
- 43", 55", 65", 75", 86", 98"
- Resolution: 3840 x 2160
- Touch Points: 10 to 20 point touch depending on model
- Dimensions (W x H x D):
- 43": 38.1 x 21.9 x 2.2 in.
- 55": 49.9 x 30.4 x 3.3 to 51.3 x 31.5 x 5.6 in.
- 65": 58.6 x 35.3 x 3.5 to 59.9 x 36.3 x 29.5 in.
- 75": 67.3 x 40.2 x 3.5 to 69.4 x 41.0 x 29.5 in.
- 86": 77.1 x 45.7 x 3.5 to 78.3 x 46.7 x 29.5 in.
- 98": 88.4 x 52.1 x 3.6 in.
- Operating Time: 16/7
- Connectivity Options:
- HDMI 2.0 (up to 3 inputs), VGA, DisplayPort
- USB (type A & B), Ethernet LAN (RJ45), WiFi module slot
Technical Specifications
| Display & Graphics | |
|---|---|
| Viewable Screen Size | 86" |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Contrast Ratio | 1,200:1 |
| Brightness | 350 Nit |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Model | Mali450 |
| Tempered Glass | Yes |
| Touchscreen Information | |
|---|---|
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 20 |
| Touchscreen Technology | Infrared (IrDA) |
| Processor & Chipset | |
|---|---|
| Processor Type | Cortex A53 |
| Processor Speed | 1.20 GHz |
| Processor Core | Quad-core (4 Core) |
| Memory | |
|---|---|
| Standard Memory | 2 GB |
| Storage | |
|---|---|
| Flash Memory Capacity | 16 GB |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 32 W |
| Network & Communication | |
|---|---|
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Wireless LAN | Yes |
| Interfaces/Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.0 Ports | 3 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Composite Video | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| S/PDIF Out | Yes |
| Software | |
|---|---|
| Operating System Platform | Android |
| Operating System | Android 13 |
| Power Description | |
|---|---|
| Input Voltage | 120 V AC |
| Power Consumption | 500 W |
| Physical Characteristics | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| Height | 46.7" |
| Width | 78.3" |
| Depth | 29.5" |
| Weight (Approximate) | 268 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 7.0 |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance |
|
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
