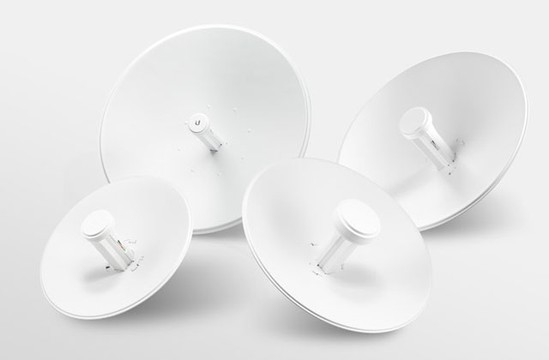

Ubiquiti PowerBeam PBE-M5-400 IEEE 802.11n 150 Mbit/s Wireless Access Point - 5.85 GHz - 15.5 Mile Maximum Outdoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet - Pole-mountable.
Select model
Description
Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam. The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Technical Specifications
| Technical Information | |
|---|---|
| Wireless LAN Standard | IEEE 802.11n |
| Frequency Band | 5.85 GHz |
| Outdoor Antenna Range | 15.5 Mile |
| Wireless Transmission Speed | 150 Mbit/s |
| Interfaces/Ports | |
|---|---|
| Ethernet Technology |
|
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | No |
| PoE PD Port | Yes |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management Port | No |
| Physical Characteristics | |
|---|---|
| Form Factor | Pole-mountable |
| Height | 16.5" |
| Width | 16.5" |
| Depth | 10.8" |
| Weight (Approximate) | 2.65 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
|---|---|
| Limited Warranty | 1 Year |
