Tripp-Lite

Tripp-Lite SR42UBMDEXPND Accessories

SKU:

SR42UBMDEXPND

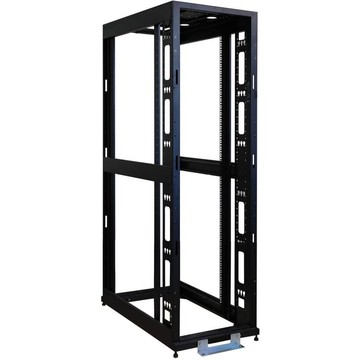

Tripp Lite 42U 4-Post Open Frame Rack Cabinet 36" Depth No Sides or Doors - 42U Rack Height x 19" Rack Width - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Physical Characteristics
Color Family Black
Product Color Black
Units Per Pallet 1
Dynamic/Rolling Weight Capacity 2250 lb
Static/Stationary Weight Capacity 3000 lb
Height 78.5"
Width 23.6"
Depth 36"
Weight (Approximate) 103 lb
Rack Height 42U
Rack Width 19"
Miscellaneous
Package Contents
  • 42U Mid-Depth 4-Post SmartRack Premium Open Frame Rack (No Sides or Doors)
  • 50 x M6 Cage Nuts
  • 50 x M6 Screws
  • Stabilizing Brackets
Additional Information
  • Grounding lug: Front and Back door frames
  • 4 Interior vertical posts with unthreaded square hole openings
  • Preinstalled casters and leveling feet
  • Rolls through standard 7 foot doorways
  • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
  • Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
  • Maximum usable internal depth of 31 inches
  • Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
  • Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
  • Compact design allows the premium open frame racks to roll through standard height commercial doorways.
  • Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility ground.
  • Open bottom for cable access.
Certifications & Standards
  • UL60950
  • CE
  • EIA/ECA-310-E
  • IEC 60297-3-100
  • DIN 41494
  • NOM (Mexico)
Assembly Required No
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 5 Year
