Touch Dynamic LI-QK10-JA3KM1N-TRN02 Accessories

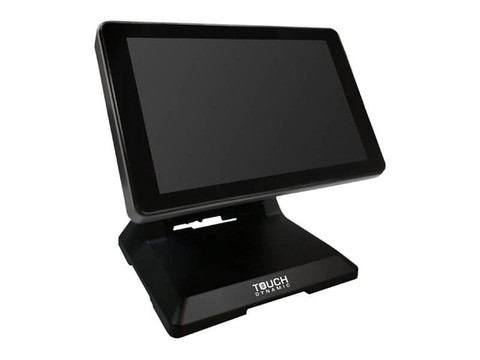

The Touch Dynamic QK10 Touchscreen is a state-of-the-art panel PC designed to deliver enhanced computing performance and versatility. Featuring a **fanless** design and an ultra-slim profile of less than 2 inches deep, this robust device is ideal for various applications such as kiosks, digital signage, and healthcare environments. The QK10 impresses with its high-brightness LED display and true flat capacitive touch screen, ensuring an intuitive user experience. Available in sleek black or white bezels and multiple sizes (10.1", 15.6", 18.5", or 21.5"), the QK10 offers customization options to meet specific user requirements.

Key features:

• Fanless operation for silent performance
• Ultra-slim design at less than 2" deep
• Ruggedized housing compliant with NEMA 4 & IP65
• High brightness LED display for visible outdoor use
• True flat capacitive touch screen for seamless interaction

Specifications:

• Motherboard: Intel® Celeron® Quad-Core SoC Processor J1900 2.0Ghz
• Cache: 2MB
• Passmark CPU Mark Score: 1930 points
• System Memory: 1xDDR3L SoDimm up to 8GB, 1333Mhz
• Graphics: Intel® HD Graphics (GFX Max Dynamic frequency up to 792 Mhz), DX11
• Number of Displays Supported: 2 (built-in and external VGA)
• LCD Display Sizes: 10.1", 15.6", 18.5", 21.5"
• LCD Backlight: LED
• Brightness: 380cd/m2
• Native Resolution: 1366 x 768
• Touch: True Flat Capacitive Touch (P-CAP)
• Storage: 2.5" SATA SSD
• External I/O Ports:
• 4 x USB 2.0
• 1 x USB 3.0
• 3 x RJ45 Serial ports
• 1 x DC Jack
• 1 x 2nd VGA
• 1 x Cash Drawer Port
• Operating Temperature: 0°C to 35°C (32°F to +95°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Humidity: 20% to 85% RH non-condensing
• OS Support: Windows 7, Windows 8.1, Windows 10 IOT, Windows 10 Pro
