Raytec

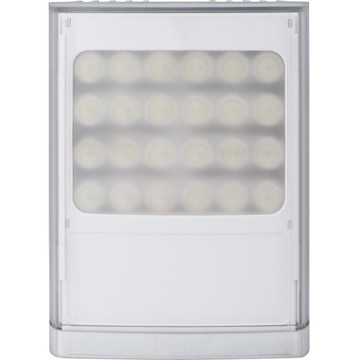

Raytec VAR2-W8-1 Accessories

SKU:

VAR2-W8-1

IR Illuminator, Raytec, VARIO Illuminators, Vario2 w8 White Light with 3 angle options incl. 10,35 & 60 deg 12/24V
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
IR Illuminator - Raytec - VARIO Illuminators - Vario2 w8 White Light with 3 angle options incl. 10,35 & 60 deg 12/24V
Technical Specifications
ico-plus ico-minus
Technical Information
Device Supported
  • Video Surveillance System
  • Smart Light System
  • Lighting Control
Features
  • Interchangeable Lens
  • Platinum Elite SMT LED Technology
  • Advanced Security Setting
  • Hot-spot Reduction Technology (HRT)
  • LED Indicator
  • Green Technology
  • Programmable
  • LED Illumination
  • Even Illumination
  • Automatic On/Off
Physical Characteristics
Color Family Silver
Product Color Silver
Height 7"
Width 5"
Depth 2.6"
Weight (Approximate) 3.60 lb
Miscellaneous
Additional Information Illuminator:
  • Total Lumens 3727lm per luminaire
  • Max Distance 180m (591ft)
  • Angle Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50°
  • Input 12/24V AC/DC
  • Consumption 42W max
  • Number of LEDs 24 Wavelength White-Light
  • Colour Temp 6000K ~
  • Colour Reproduction Index >70
  • Temperature Range -50° to +50°C (-58 to 122°F)
  • Cable Length 2.5m
Integrated Command and Control Technology:

Integrated Standard Features:
  • Power adjust from 20-100%
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • Photocell sensitivity adjust
  • LED status indicator provides status on performance of the unit
  • LED status indicator on/off
  • Disable programming mode
Advanced Features (accessed via VARIO remote control):
  • Timer function (up to 30 mins)
  • Telemetry control
  • Remote Dimming
  • Restore factory default settings
  • Optional PIN to lock in settings and limit access
  • Remote Control can be disabled for improved security
Application/Usage Surveillance
Certifications & Standards IP66
Country of Origin United Kingdom
