Raytec

Raytec VAR2-IPPOE-W4-1 Accessories

SKU:

VAR2-IPPOE-W4-1

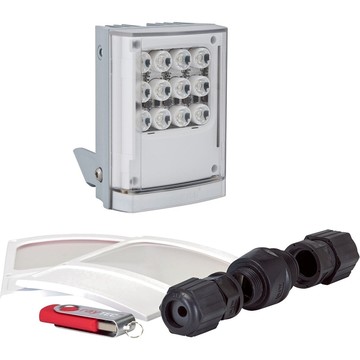

Raytec VAR2-IPPoE-w4-1 Medium Range White-Light Network Illuminator - Platinum Elite SMT LED Technology, Interchangeable Lens, Hot-spot Reduction Technology (HRT), Advanced User Defined Settings, Dedicated IP Lighting, PoE, Integrated Web Interface, Programmable, Automatic On/Off - Silver
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
VARIO2 IP illuminators provide dedicated lighting for IP cameras. They provide the ultimate solution for smart, situation -dependent lighting for video surveillance and can be fully integrated into an IP eco-system. VARIO2 IP enables users to create dynamic lighting systems, capable of controlling illuminators individually or in groups, to automatically deliver the exact amount of light where and when it is needed, improving image quality under any condition.
Technical Specifications
ico-plus ico-minus
Technical Information
Device Supported
  • Video Surveillance System
  • Network Camera
Features
  • Platinum Elite SMT LED Technology
  • Interchangeable Lens
  • Hot-spot Reduction Technology (HRT)
  • Advanced User Defined Settings
  • Dedicated IP Lighting
  • PoE
  • Integrated Web Interface
  • Programmable
  • Automatic On/Off
Physical Characteristics
Product Color Silver
Height 5"
Width 4"
Depth 2.5"
Weight (Approximate) 2.10 lb
Miscellaneous
Additional Information Illuminator:
  • Total Lumens 1863lm per luminaire
  • Max Distance 110m (361ft)
  • Angle Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50°
  • Input PoE+ IEEE 802.3at or 24V DC
  • Consumption 25W
  • Data Input Cat 5 Cable
  • Beam Shape Elliptical with HRT (Hot-spot Reduction Technology
  • Number of LEDs 12
  • Wavelength White-Light
  • Colour Temp 6000K~
  • Colour reproduction Index >70
  • Temperature Range -50° to +50°C (-58 to 122°F)
  • Cable Length 2 x 2.5m
  • Minimum System Requirements PC running Windows 7 with IE8 and network access.
Integrated Command and Control Technology:

Hardware Features:
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • External telemetry input
Quick Access Software Features (provided as standard via integrated web interface):
  • Individual or group control (Groups up to 16 units)
  • Power On/Off
  • Power control: 20-100%
  • Boost: 120% power for 10 seconds
  • Deterrent feature with selectable patterns and speeds
Advanced User Defined Software Features: (provided as standard via integrated web interface)
  • Timer functions
  • Soft start turn on
  • 3 x deterrent patterns
  • 3 x deterrent speeds
  • Selectable external telemetry input: volt - free or TTL
  • Photocell sensitivity trigger level
  • Assign illuminator to group for collective control
  • Administrator and user access levels
  • Password Protection: create user and administrator passwords
  • Assign name, group name and IP address
  • Restore factory defaults
  • Restart/reboot
  • Software upgrade
  • Standard and advanced diagnostics
  • Supported protocols include HTTP, Local and VMS operating modes (including combinations)
  • Ping command functionality
System Integration (Application Programming Interface):
  • API for integration into 3rd party platforms
  • API for integration into network devices via HTTP commands
Certifications & Standards IP66
Country of Origin United Kingdom
