Raytec

Raytec VAR2-HY8-1 Accessories

SKU:

VAR2-HY8-1

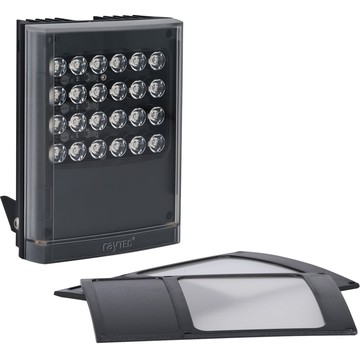

Raytec VAR2-hy8-1 Long Range Hybrid Illuminator - Interchangeable Lens, Advanced Security Setting, Hot-spot Reduction Technology (HRT), LED Indicator, Green Technology, Programmable, LED Illumination, Energy Saving, Platinum Elite Twin-Core SMT LED Technology, Even Illumination - Black
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
VARIO Hybrid 8 Infra-Red 850nmand White
Technical Specifications
ico-plus ico-minus
Technical Information
Device Supported
  • Video Surveillance System
  • Smart Light System
Features
  • Interchangeable Lens
  • Advanced Security Setting
  • Hot-spot Reduction Technology (HRT)
  • LED Indicator
  • Green Technology
  • Programmable
  • LED Illumination
  • Energy Saving
  • Platinum Elite Twin-Core SMT LED Technology
  • Even Illumination
Physical Characteristics
Product Color Black
Height 7"
Width 5"
Depth 2.6"
Weight (Approximate) 3.60 lb
Miscellaneous
Additional Information Illuminator:
  • Wavelength Infra-Red 850nm (940nm options available) White-Light
  • Max Distance 290m (951ft) 144m (472ft)
  • Total Lumens n/a 2981lm per luminaire
  • Colour Temp n/a 6000K~
  • Colour Reproduction Index n/a >70
  • Angle Standard pack includes 10 circular + 35 x 10 (fitted as standard) and 60 x 25 elliptical lenses Additional optional lenses: 80 x 30 and 120 x 50
  • Input 24V DC
  • Consumption 40W
  • Number of LEDs 12 x Infra-Red, 12 x White-Light
  • Temperature Range - 50° to +50°C (-58 to 122°F)
  • Cable Length 2.5m Cable Specification Red/Black - Power, White/Yellow - Photocell following output, Orange/ Purple - Telemetry input
Integrated Command and Control Technology :

Integrated Standard Features:
  • In-built photocell for automatic on/off operation
  • Photocell following output
  • Telemetry input
  • LED status indicator provides status on performance of the unit
Advanced Features (accessed via VARIO remote control):
  • Power adjust from 20-100%
  • Photocell sensitivity adjust
  • Timer function (up to 30 mins)
  • Telemetry control
  • LED status indicator on/off
  • Restore factory default settings
  • Disable programming mode
  • Two-in-one Hybrid solution
  • Volt free IR/WL switch
Certifications & Standards IP66
Country of Origin United Kingdom
