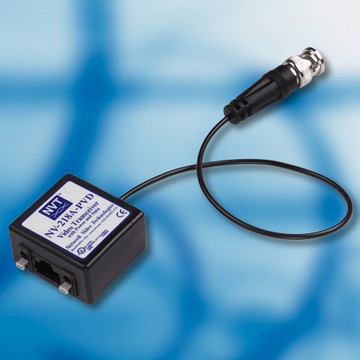

NVT NV-218A-PVD Network / IP Video Equipment

The NVT NV-218A-PVD Video Transceiver is a robust solution for transmitting real-time monochrome or color video across Unshielded Twisted-Pair (UTP) telephone wire. Engineered for seamless performance, this passive device combines video, power, and data signals via RJ45 or press-fit terminal blocks, ensuring organized connections. In addition to its impressive range of up to 3,000 ft with an active receiver, it supports “up-the-coax” control signals, making it suitable for both new installations and retrofitting shared cable environments. With exceptional interference rejection and built-in transient protection, the NV-218A-PVD ensures clear and reliable video signals co-exist alongside telephone and other low-voltage circuits. Designed for versatility and durability, this transceiver is an industry-backed solution that carries a limited lifetime warranty for peace of mind.
Key features:

• Power-Video-Data (PVD) signals routed via UTP and RJ45 or press-fit terminal block
• Mini-coax pigtail for in-camera mounting
• Range of up to 3,000 ft with an NVT active receiver
• Exceptional interference rejection for clear video signals
• Built-in transient protection for enhanced durability

Specifications:

• Network Wiring:
  • One Unshielded Twisted Pair
  • 24-16 AWG (0.5-1.31 mm) with a resistance of 2 or better
  • Impedance: 100 ± 20 ohms
  • Differential Capacitance: 19 pF/ft max (62 pF/m max)
• Video:
  • Frequency response: DC to 5 MHz
  • Attenuation: 0.5 dB typical
  • Impedance: 75 ohms for coax, 100 ohms for UTP
• Power: No external power required
• Environmental:
  • Temperature: -20 to +75°C
  • Humidity: 0 to 95% (non-condensing)
  • Transient immunity as per ANSI/IEEE 587 C62.41
• Mechanical:
  • Body Length: 1.50 inches (38mm)
  • Body Depth: 0.85 inches (22mm)
  • Body Height: 1.54 inches (39mm)
  • Pigtail Length: 9 inches (228 mm)
  • Weight: 2.0 oz (60 g)
