Honeywell

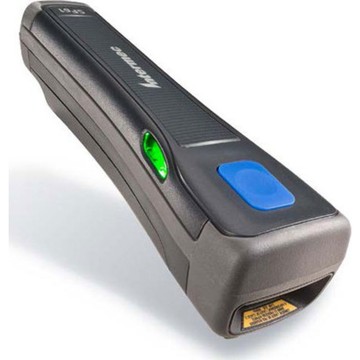

Honeywell SF61B1D, BLUETOOTH, 1D

SKU:

SF61B1D-SA001

The Intermec SF61B1D-SA001 delivers 1D linear imager scanning via Bluetooth wireless in a handheld form factor measuring 6.1 in long, 1.8 in wide and 1.5 in tall, weighing just 6.50 oz. Its omni-directional scan pattern captures barcodes at 200 scan/s with a maximum scan resolution of 4 mil, covering a broad symbology set that includes Code 39, Code 128/GS1-128, Code 93/93i, EAN/UPC, Codabar, Interleaved 2 of 5, GS1 DataBar Omnidirectional, GS1 DataBar Expanded and Telepen, among others. The rechargeable Lithium Ion battery supports up to 28,000 scans per charge, and the unit pairs with iOS, Android and PC platforms. Certified to UL, CE Mark (EU), FCC Part 15 Class B, ICES-003 Class B and CISPR 22 Class B standards, and compliant with RoHS, WEEE and REACH, the SF61B1D-SA001 is covered by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Intermec SF61B Barcode Scanner is a rugged, compact 2D mobility scanner designed for the highly mobile worker. It features the industry's fastest 2D imaging technology for rapid, omni-directional scanning, and easily pairs with iOS, Android, and Windows Mobile devices via Bluetooth. The scanner’s unique magnetic quick attach/release system enhances flexibility and efficiency in data collection tasks, while boasting impressive durability with an IP65 rating against dust and water. With a field-replaceable battery lasting well beyond a full shift, the SF61B is perfect for scan-intensive applications.


Key features
  • Rugged Design: Survives 26 drops from 2m (6.5 ft).
  • Rapid Scanning: Exceptional motion tolerance up to 500 in/sec.
  • Long Battery Life: Supports up to 28,000 scans for 1D codes.
  • Bluetooth Connectivity: Pairs seamlessly with multiple devices.
  • Versatile Accessories: Includes a magnetic quick disconnect and various carrying options.

Specifications
  • Dimensions: 15.6 cm x 4.6 cm x 3.9 cm (Magnet End-Cap)
  • Weight: 184 gm (6.5 oz)
  • Battery: Lithium-ion rechargeable (2,600 mAh)
  • Battery Life: 28,000 scans (1D) or 25,000 scans (2D)
  • Communication: Bluetooth Class 1 v2.1+EDR, with a range of 100 m (325 ft)
  • Operating Temperature: -20°C to +50°C
  • Environmental Rating: IP65 (dust-tight and water-resistant)
  • Warranty: Standard three-year warranty

Main Features

  • Rugged: Industrial

  • Connectivity: Cordless

  • Connection: Bluetooth

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Barcode Symbology Supported
  • Codabar
  • Code 11
  • Code 39
  • Code 93/93i
  • Code 128 / GS1-128
  • EAN/UPC
  • GS1 DataBar Limited
  • GS1 Composite (linear only)
  • GS1 DataBar Expanded
  • GS1 DataBar limited
  • GS1 DataBar Omnidirectional
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • Standard 2 of 5
  • Telepen
Image Sensor Type Imager
Scan Rate 200 scan/s
Maximum Scan Resolution 4 mil
Scan Pattern Omni-directional
Network & Communication
Bluetooth Yes
Power Description
Power Source Battery
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge 28000
Battery Rechargeable Yes
Physical Characteristics
Height 1.5"
Width 1.8"
Length 6.1"
Weight (Approximate) 6.50 oz
Miscellaneous
Additional Information

USB Cable separate
Platform Supported
  • PC
  • iOS
  • Android
Certifications & Standards
  • UL
  • CE Mark (EU)
  • FCC Part 15 Class B
  • ICES-003 Class B
  • CISPR 22 Class B
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • China RoHS
  • WEEE
  • REACH
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document mod-sf61-intermec-readers-datasheet.pdf SF61B1D-SA001 Product document mod-sf61-intermec-readers-user-manual.pdf SF61B1D-SA001 Product document intermec-sf61.pdf SF61B1D-SA001 Product document mod-sf61-intermec-readers-datasheet.pdf MOD-SF61 Product document mod-sf61-intermec-readers-user-manual.pdf MOD-SF61
