HP 9YH49AAABA Scanners

SKU:

9YH49AA#ABA

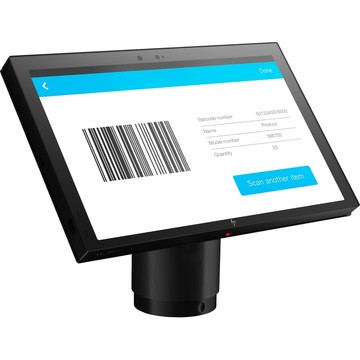

HP Engage One Pro Bar Code Scanner, an integrated low-profile scanner for HP Engage One Pro systems that supports 1D/2D barcodes, digital coupons, mobile wallets, and passport OCR.
ico-puzzle-piece-02 This product is compatible with...
Technical Specifications
ico-plus ico-minus
Technical Information
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • Chinese Sensible Code
  • Code One
  • Data Matrix
  • GM Code
  • MaxiCode
  • MicroPDF417
  • Micro QR Code
  • PDF417
  • QR Code
Image Sensor Type CMOS
Scanning Distance 9.60"
Field of View (Horizontal) 42°
Field of View (Vertical) 28°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Minimum Print Contrast 25%
Maximum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.7 mil
Interfaces/Ports
Host Interface USB
Power Description
Maximum Operating Power Consumption 3 W
Physical Characteristics
Product Color Black
Height 10.1"
Width 30.7"
Depth 45"
Weight (Approximate) 0.34 oz
Miscellaneous
Package Contents
  • Engage One Pro Bar Code Scanner
  • Ddocumentation
  • Warranty Card
Compatibility

HP Engage One Pro All-in-One system
Ingress Protection (IP) Rating IP54
Platform Supported
  • PC
  • Android
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
