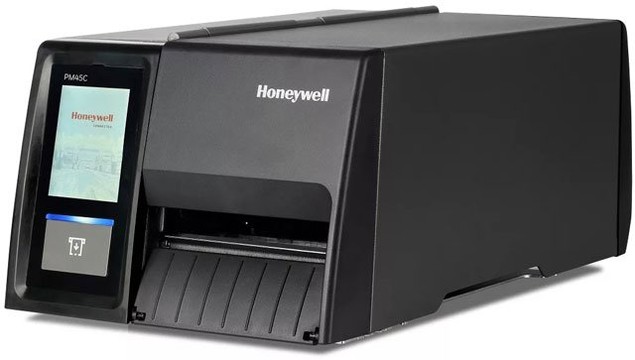

Honeywell PM45C Label Printer, Long Door, Direct Thermal, 203 dpi, USB Host, RS232, Ethernet

The Honeywell PrintFlex Pro (PM45 family) is a professional industrial label printer platform designed for high-volume, mission-critical labeling in warehouses, logistics, manufacturing and retail environments. Offered in both thermal transfer and direct thermal configurations, the series delivers consistent 203 dpi output with fast throughput and adaptable media handling to support labels, tags and lined media in roll or fanfold formats. Its robust print mechanism, ample onboard memory and broad connectivity options — including USB, RS232, Ethernet and optional Wi‑Fi/Bluetooth — simplify integration into existing systems while accessories such as peelers and liner take-up spindles speed label application and reduce operator handling time.

Key Features

• High-speed throughput: Up to 356 mm/s print speed supports demanding, high-volume labeling workflows and reduces production bottlenecks.
• Versatile print technologies: Available in thermal transfer and direct thermal variants to match durability and consumable requirements for diverse applications.
• Broad connectivity: USB (Type B), USB Host, RS232 and Ethernet are standard, with some configurations offering Wi‑Fi and Bluetooth 5.0 for flexible deployment.
• Integrated media handling: Options such as peeler, liner take-up spindle and rewinder streamline label dispensing and post-print processing.
• Operator-friendly interface: LCD and touch-screen display options provide clear status, straightforward setup and faster local control.

Specifications

• Brand: Honeywell
• Product family / Model: PM45 (PrintFlex Pro series)
• Printing Technology: Thermal transfer or Direct thermal (model dependent)
• Resolution: 203 dpi (8 dots/mm)
• Maximum Print Speed: Up to 356 mm/s
• Maximum Print Width: Up to 108 mm
• Maximum Media Width: 114 mm
• Maximum Roll Diameter: Up to 213 mm (configuration dependent)
• RAM: 256 MB
• Flash Memory: 512 MB
• Connectivity: USB (Type B), USB Host, RS232, Ethernet; select variants include Wi‑Fi and Bluetooth 5.0
• Display: LCD or Touch screen (model dependent)
• Supported Media Types: Labels, tags and lined media; roll or fanfold
• Media Sensing Methods: Gap, notch, black mark, continuous, low media, end of media (where supported)
• Accessories / Features: Peeler, liner take-up spindle, rewinder (available on select variants)
• Ribbon Capacity (sample configuration): 229 m (where applicable)
• Dimensions (W x H x D): 253 x 181 x 432 mm or 253 x 245 x 500 mm (configuration dependent)
