Honeywell

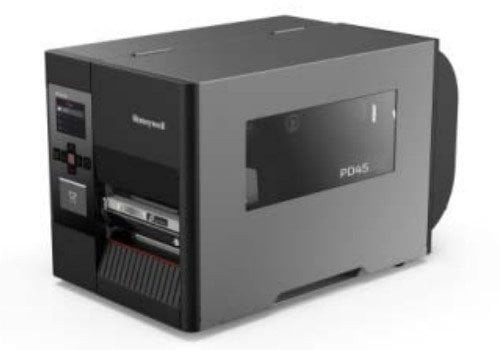

Honeywell PD45S Label Printer, 300 dpi, LCD Color Display, 200 mm/s, Ethernet, USB, Peeler, Rewinder, LTS

Name: Honeywell PD45S Label Printer, 300 dpi, LCD Color Display, 200 mm/s, Ethernet, USB, Peeler, Rewinder, LTS
Brand: Honeywell
SKU: PD45S0C0010020300
Price: 3002.04 CAD
Availability: InStock

SKU:

PD45S0C0010020300

label printer, midrange printer, thermal transfer, 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 105mm, roll diameter (max.): 203mm, ribbon core: 25,4mm, speed (max.): 200 mm/s, USB (type B), USB Host, Ethernet (10/100 Mbit), emulation: ZPLII, ZSim II, IPL, DPL, RAM: 128 MB, Flash: 128 MB, peeler, rewinder, Label Taken Sensor, Black Mark Sensor, Gap Sensor, order separately: power cable

$3,706.22

Have you seen a lower price?

Add a protection plan for: $255.53 View details

Same-day shipping on orders placed before 2:00 p.m. CT

Secure payment with

Need help? Contact our specialists to learn more about our solutions:

Description

The Honeywell PD45S Barcode Label Printer is an advanced industrial-grade solution designed to excel in various sectors including manufacturing, retail, transportation, healthcare, and government applications. Engineered with an all-metal frame and minimal internal mechanical parts, the PD45S ensures durability and a sleek, compact design. Its smart printing capability allows users to configure settings directly within the printer, eliminating the need for constant PC connections. With features like dynamic positioning technology and versatile connectivity options, this printer stands out as a reliable choice for high-end printing needs.

Key Features

Rugged and Durable: All-metal frame structure for extended durability in tough environments.
Excellent Performance: Advanced industrial print head for superior printing quality.
Patented Dual-sensor Positioning Technology: Ensures minimum label width of 5mm with accuracy of ±0.5mm.
Easy to Operate: One-key driver installation for simplified setup and maintenance.
Complete After-sales Services: Industry-leading support for enhanced production efficiency.

Specifications

Product Models:
- PD45SOF: 3.5" color touch control LCD
- PD45SOC: 2.36" keyed LCD
Printing Modes: Direct thermal and thermal transfer
Processor: Arm Cortex-A7, 800MHz
Memory: 128 MB flash memory, 128 MB DDR3 SDRAM
Printing Resolution:
- 203 dpi: 8 dots/mm
- 300 dpi: 11.8 dots/mm
Printing Speed:
- 203 dpi: 50-250 mm/s (2-10 ips)
- 300 dpi: 50-200 mm/s (2-8 ips)
Dimensions: 438 mm x 270 mm x 249 mm (17.24 in x 10.63 in x 9.80 in)
Weight: 10.82 kg (23.85 lbs)
Operating Temperature: +5°C to +40°C (+41°F to +104°F)
Humidity: 20% to 85%, non-condensing

Main Features

Rugged: Industrial
Equipment Format: Mid-Range
Connection: Serial, USB, Ethernet
Optional Upgrades: Rewinder, Peeler, Liner take-up
Printing Technology: Thermal Transfer

Technical Specifications

Technical Information
Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	7.87 in/s
Maximum Print Resolution (dpi)	300
Maximum Print Length	7.22"
Maximum Print Width	4.16"
Barcode Symbology Supported	1D 2D UPC/EAN Shipping Container UCC/EAN 128 Serial Shipping Container MH10.8 AIAG OGMARS POSTNET HIBCC ISBT-128 GM1724
Peel Facility	Yes
Rewinder	Yes
Application/Usage	Industrial Retail Healthcare Manufacturing Transportation & Logistic
Features	Ergonomic Compact Rugged LCD Display
Optional Connectivity	Wireless LAN
Print Technology	Thermal Transfer

Interfaces/Ports
Serial Port	Yes
USB Host	Yes
USB	Yes

Network & Communication
Network Ready	Yes
Ethernet	Yes
Ethernet Technology	Fast Ethernet

Media Types & Handling
Media Type	Label Tag Notch Continuous Label Continuous Paper
Media Sensor	Black Mark Sensor Gap Sensor Label Taken Sensor
Media Thickness	10 mil
Maximum Roll Diameter	3.15"
Maximum Label Width	4.49"
