Honeywell

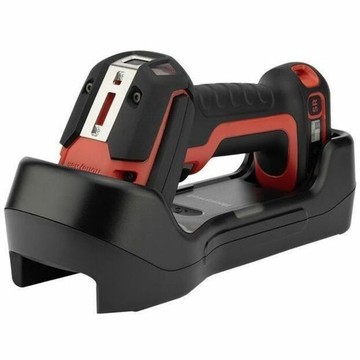

HONEYWELL, SCANNER, GRANIT ULTRA USB KIT: CORDLESS, BLUETOOTH, RUGGED, 1D/2D, HIGH DENSITY, VIBRATOR, CONTACT CHARGING RED SCANNER, BATTERY (BAT-SCN11), USB CABLE (CBL-500-300-S00), HORIZONTAL BASE (C

SKU:

2105IHD-3USB-CLHN

Rated IP65 and IP68, the Honeywell 2105IHD-3USB-CLHN is a cordless Bluetooth area-imaging scanner kit configured for high-density 1D and 2D extended-range scanning with a 1280 x 1080 image sensor and a scanning distance of 6.77 in. Code 39 element resolution spans 2 mil to 5 mil, DataMatrix from 5 mil to 10 mil, and the 28-degree horizontal by 24-degree field of view supports skew and pitch angles to 65 degrees and full 360-degree roll tolerance at up to 100000 lux ambient light. The AI-powered engine reads Aztec, Data Matrix, QR/Micro QR, PDF417, DotCode, Digimarc digital watermarks, and OCR A/B among other symbologies. Drop resistance is certified to MIL-STD-810G at 3 m (10 ft), and the 3300 mAh Li-Ion battery delivers up to 14 Hour of run time at 7.50 W maximum operating power. The kit ships in red and includes the contact charging scanner, battery BAT-SCN11, USB cable CBL-500-300-S00, and horizontal base CCB23-100BT-07N, covering warehouse, distribution, manufacturing, and logistics environments under a 3 Year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Honeywell Granit 2105iSR is a handheld, ultra-rugged barcode scanner family designed for demanding industrial and commercial environments. Built on the Granit Ultra platform, these models deliver reliable 1D and 2D imaging with FlexRange/extended-range options, support for DPM, Digimarc and OCR, and multiple host interfaces (Bluetooth, USB, RS-232). Intended for warehousing, logistics, manufacturing and point-of-sale deployments, the 2105 series combines high ingress protection, long battery life and contact charging with vibration/haptic feedback to improve operator confidence and throughput. Variant options and removable battery designs simplify deployment and maintenance while maintaining consistent performance across challenging temperatures and heavy-use workflows.

Key Features

  • Ultra-rugged construction: Industrial-grade durability with high IP ratings (IP65/IP67/IP68 across variants), drop resistance and tumble ratings for continuous operation in harsh environments.
  • Flexible range imaging: FlexRange and XR/short-to-extended read ranges let a single device capture close-up and longer-distance barcodes, reducing the need for multiple scanner types.
  • Wide symbology support: Decodes 1D, 2D, postal, Digimarc, DotCode and OCR formats and supports DPM, enabling reliable capture across labels, direct-mark parts and printed materials.
  • Versatile connectivity: Choose cordless Bluetooth or wired interfaces (USB, RS-232, KBW multi-interface) to integrate with POS, host systems and mobile computers.
  • Operator feedback & charging: Haptic/vibration feedback and drop-in contact charging cradles streamline user interaction and field maintenance; removable batteries simplify swaps and servicing.

Specifications

  • Brand: Honeywell
  • Product family / model: Granit Ultra 2105 (Granit 2105iSR)
  • Scanner type: Handheld 1D / 2D imager (FlexRange / XR options)
  • Supported symbologies: 1D, 2D, Postal, Digimarc, DotCode, OCR, DPM
  • Connectivity / interfaces: Bluetooth; RS-232, USB, KBW (multi-interface on select SKUs)
  • Charging method: Contact charging / drop-in cradle
  • Battery: Removable battery options; battery included (examples: BAT-SCN11)
  • Battery capacity: 3300 mAh (variant)
  • Battery life (scans per charge): 100000 scans per charge (variant)
  • Ingress protection: IP65, IP67, IP68 (variant dependent)
  • Drop resistance: 3 m (variant)
  • Tumble rating: 7000 tumbles (variant)
  • Operating temperature range: -20 °C to 50 °C (variant)
  • Color options: Red, Black (variant dependent)

Main Features

  • Rugged: Industrial

  • POS: Yes

  • IP Rating: IP68

  • Range: Extended Range

  • Connectivity: Cordless

  • Connection: Bluetooth, USB

  • Scanner Capability: Imager, 1D, 2D

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
FAQs
ico-plus ico-minus
What barcode symbologies can the Honeywell Granit 2105 read?
The Granit 2105 decodes 1D, 2D, postal, Digimarc, DotCode, OCR, and DPM symbologies, making it capable of reading standard labels, direct-part-marked components, and printed materials.
What wireless and wired connectivity options does the Honeywell Granit 2105 support?
It supports Bluetooth for cordless operation and wired interfaces including USB, RS-232, and KBW, allowing integration with POS systems, host computers, and mobile devices.
How rugged is the Honeywell Granit 2105, and what ingress protection does it carry?
The Granit 2105 is rated IP65, IP67, and IP68 across its variants, withstands drops of up to 3 m, and is rated for 7,000 tumbles, making it suited for continuous use in harsh industrial environments.
What industries and use cases is the Honeywell Granit 2105 designed for?
It is intended for warehousing, logistics, manufacturing, and point-of-sale deployments where durable, high-throughput scanning is required in demanding or variable conditions.
How is the Honeywell Granit 2105 charged, and can the battery be replaced in the field?
The scanner uses contact charging via a drop-in cradle, and its battery is removable, simplifying field swaps and ongoing maintenance without taking the device out of service.
