Honeywell

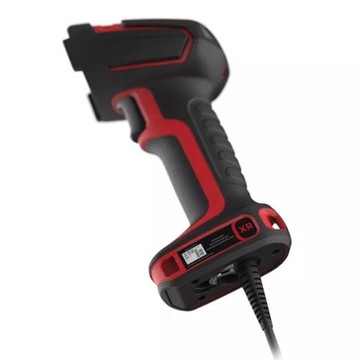

HONEYWELL, SCANNER, GRANIT ULTRA SCANNER-ONLY: TETHERED, RUGGED, 1D/2D, HIGH DENSITY, VIBRATOR, RED SCANNER, NA

SKU:

2100IHD-3N

Rated IP65 and IP68, the Honeywell 2100IHD-3N is a tethered, high-density area-imager scanner built for warehouse, distribution, manufacturing, picking, and packing environments. Its 1280 x 1080 image sensor resolves Code 39 down to 2 mil and DataMatrix from 5 mil to 10 mil, with a minimum print contrast of 15%, while AI-powered decode logic supports 1D symbologies including Code 39, Code 128, Code 93, EAN, UPC, GS1 Databar, and Codabar alongside 2D formats such as Data Matrix, QR/Micro QR, PDF417, Aztec, DotCode, and Han Xin code, plus direct part marking. A 28-degree horizontal by 24-degree field of view accepts skew and pitch to 65 degrees and full 360-degree roll, with motion tolerance to 157.48 in/s and maximum ambient light immunity to 100000 lux. Drop-rated to 3m under MIL-STD-810G and to 2.5m for 20 drops across -30 degrees C to 50 degrees C, the 11.64 oz red scanner connects via USB, serial, or keyboard wedge at up to 2.15 W operating power, operates from -22 degrees F to 122 degrees F, and is covered by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Granit Ultra 2100i is an ultra-rugged industrial handheld barcode scanner built for demanding warehouse, distribution, manufacturing, picking, and packing environments. Its AI-powered area imager with a 1280 x 1080 pixel array delivers an average 45% faster scanning speed compared to the Granit XP, confidently reading both 1D and 2D codes — including damaged, low-quality, and direct part marked barcodes — at motion tolerances up to 157.48 in/s. Dual IP65 and IP68 sealing, MIL-STD-810G-tested 3m (10 ft) drop resistance, 7,500 tumbles, and an operating temperature range of -22°F (-30°C) to 122°F (50°C) ensure continuous uptime in the harshest conditions. USB, Serial, and Keyboard Wedge interfaces simplify integration with existing host systems, while an ergonomic design and out-of-the-box readiness reduce operator training time. A three-year factory warranty underpins long-term deployment confidence.
Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document granit-ultra-2100isr.pdf MOD-2100IXR Product document granit-ultra-2100ixr.pdf MOD-2100IXR
FAQs
ico-plus ico-minus
What host interfaces does the Honeywell Granit 2100i support for connecting to a workstation or POS system?
The Granit 2100i supports USB, RS-232 TTL serial, and Keyboard Wedge interfaces, giving you flexibility to integrate with a wide range of host systems without additional adapters.
How durable is the Honeywell Granit 2100i, and can it handle freezer-to-floor temperature swings?
The scanner is rated IP65 and IP68, survives 3m (10 ft) drops tested to MIL-STD-810G, and withstands 7,500 tumbles from 1m (3.3 ft). Its operating temperature range runs from -30°C to 50°C (-22°F to 122°F), making it suitable for both freezer environments and high-heat production floors.
What barcode symbologies can the Honeywell Granit 2100i decode?
It reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies, with a minimum barcode element resolution of 2.5 mil for 1D codes and 5 mil for 2D codes.
How far can the Honeywell Granit 2100i XR model scan, and what is its motion tolerance?
The XR model scans from at or near contact up to 33 feet for 100 mil Code 39 rack labels, and up to nearly 6 feet (1.8m) for UPC codes. Motion tolerance is up to 4 m/s (157 in/s), which helps maintain read rates even when codes are moving or the operator is scanning quickly.
What warranty does the Honeywell Granit 2100i carry, and where can I get technical support?
The scanner includes a three-year factory warranty. Technical support is available through the Honeywell Technical Support portal at honeywell.com/PSStechnicalsupport, and user documentation is hosted at automation.honeywell.com.
Are mounting, holster, and cable accessories available for the Honeywell Granit 2100i?
Yes, Honeywell offers a broad range of accessories including wall-mount cup holders, a Granit holster, vehicle mount kits, a flexible presentation stand, a tool balancer reel, USB cables in lengths up to 5m (16.4 ft), RS-232 cables in standard and industrial freezer-rated versions, KBW cables, and heaters for 24V or 36–48V freezer environments.
