Epson

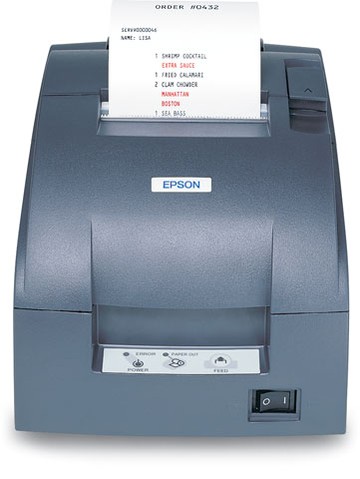

Epson TM-U220PD, Parallel, Black

SKU:

C31C518653

Impact Receipt Printer, Epson TM-U220PD, Parallel interface, 2-Color Printing, 6 Lines Per Second, Tear Bar, No AutoCutter, Gray, Includes US power supply, Interface Cables Sold Separately. Non-Returnable.
Description
ico-plus ico-minus

The Epson TM-U220 Receipt Printer is designed for maximum efficiency in retail, restaurant, and hospitality environments. This compact and reliable printer offers fast print speeds and is easy to operate, ensuring convenient receipt printing for customers and kitchen orders. With features like drop-in paper loading and two-color black and red printing, businesses can easily highlight special offers and create impactful logos. Available in three models—with options for autocutting and wall mounting—the TM-U220 series is the perfect choice for organizations looking to enhance their point-of-sale capabilities while maintaining cost-effectiveness.


Key Features
  • Faster print speeds for improved workflow.
  • Drop-in paper loading for effortless paper installation.
  • Two-color black and red printing for enhanced promotional materials.
  • Adjustable paper widths (58mm, 70mm, or 76mm).
  • Models with autocutter available for full or partial cuts.
  • Compatible with existing TM-U200 systems for a smooth upgrade.

Specifications
  • Print Method: 9-pin serial impact dot matrix
  • Print Speed: 4.7 lps (40 columns), 6.0 lps (30 columns)
  • Paper Dimensions: 57.5mm, 69.5mm, 76mm (W)
  • Paper Thickness: 0.06 to 0.085mm
  • Column Capacity: 40/42 or 33/35 columns
  • Interface: RS-232, Bi-directional parallel, optional USB
  • Reliability: MTBF 18 x 104 hours, MCBF 18 x 106 lines
  • Weight: Type A: 2.7 Kg, Type B: 2.5 Kg, Type D: 2.3 Kg
  • Power Supply: AC adapter included
  • Dimensions: Type A: 160 x 286 x 157.5 mm

Main Features

  • Equipment Format: Desktop

  • POS: Yes

  • Case color: Grey

  • Printing Technology: Dot Matrix

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 6 lps
Number of Pins 9-pin
Number of Columns 42
Application/Usage Desktop
Features Tear Bar
Print Technology Impact Dot Matrix
Memory
Standard Memory 4 KB
Interfaces/Ports
Parallel Port Yes
Media Types & Handling
Media Type Receipt
Media Size Custom Size
Media Sensor Out Of Paper Sensor
Media Thickness 3.35 mil
Maximum Roll Diameter 3.27"
Maximum Label Width 2.99"
Software
Operating System Supported
  • OPOS
  • Windows
Power Description
Power Source Power Adapter
Input Voltage 24 V DC
Physical Characteristics
Form Factor Wall Mount
Color Family Gray
Product Color Gray
Height 5.5"
Width 6.3"
Depth 9.8"
Weight (Approximate) 5.07 lb
Miscellaneous
Additional Information

Paper dimensions: 57.5±0.5mm, 69.5±0.5mm, 76±0.5mm (W) x dia. 83.0
Platform Supported PC
Certifications & Standards

EMC:

  • VCCI class A
  • FCC class A
  • CE marking
  • AS/NZS 3548 class B

Safety:

  • UL
  • CSA
  • TUV (EN60950)
Energy Star Yes
Country of Origin China
Environmentally Friendly Yes
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document tmu220.pdf C31C518653 Product document mod-tm-u220-epson-thermal-printers-datasheet.pdf MOD-TM-U220 Product document mod-tm-u220-epson-receipt-printers-manual-multilanguage.pdf MOD-TM-U220
