Elo

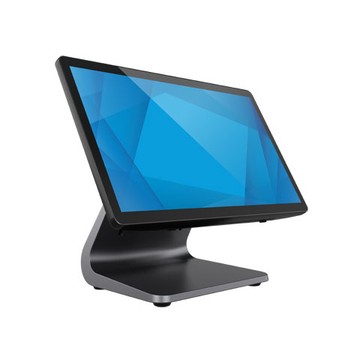

Elo E-Series 3, 8GB RAM, 128GB SSD, 39.6 cm (15,6''), Full HD, USB, USB-C, RS232, BT, Ethernet, Intel Celeron, SSD, 11 IoT Enterprise, kit (RS232), black

SKU:

E849711

POS System, screen size: 39.6 cm (15.6''), touch technology: capacitive, multi touch, resolution: 1920x1080 pixels, VESA mount (75x75 mm), brightness 200cd, contrast: 500:1, connection: USB (2.0, 3.0), USB-C, RS232, Bluetooth (Class 5.3), Ethernet, drawer kickout, audio, Intel Celeron, RAM: 8 GB, SSD: 128 GB, Win, 11 IoT Enterprise, incl.: cable (RS232), power supply unit, power cable (EU, US), QSG, colour: black
Description
ico-plus ico-minus

The Elo E-Series 15E2 POS Touch Terminal is a compact and rugged all-in-one solution, ideal for hospitality and retail environments. Featuring a 15-inch touchscreen and powered by an Intel Celeron dual-core processor, this sleek device combines functionality with durability. Its stylish design allows for installation on a cash drawer, as well as wall or pole mounting. With customer-installable peripherals and multiple connectivity options, the 15E2 ensures a seamless experience for both staff and customers in busy environments.


Key Features
  • Compact, rugged design perfect for retail and hospitality settings.
  • Fast, accurate touch response with zero bezel for easy cleaning.
  • Multiple connectivity options including 4 USB and 2 serial ports.
  • Optional touch technologies: IntelliTouch and AccuTouch.

Specifications
  • Screen Size: 15.6 inches
  • Processor: Intel Celeron J1800 (up to 2.58 GHz)
  • RAM: 2GB DDR3L (expandable to 4GB)
  • Storage: 320GB SATA HDD
  • Ports:
    • 4 x USB 2.0
    • 2 x Serial DB9
    • 1 x Gigabit LAN
    • 2nd VGA out
  • Operating System: Windows POSReady 7 or No OS
  • Dimensions: 15.4" x 13.0" x 6.3" (max with stand)
  • Weight: 10.4lbs (4.7kg)
  • Temperature Range: Operating: 0°C to 35°C
  • Warranty: 3 years

Main Features

  • Connection: Serial, USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3
Form Factor All-in-One
Features Edge-to-Edge Glass Design
Processor & Chipset
Processor Manufacturer Intel
Processor Type Celeron
Maximum Turbo Speed 3.60 GHz
Processor Model N97
Processor Cache 6 MB
Memory
Standard Memory 8 GB
Memory Technology DDR5 SDRAM
Maximum Memory Supported 16 GB
Storage
Solid State Drive Capacity 128 GB
Solid State Drive Interface M.2/PCI Express
Display & Graphics
Screen Size 15.6"
Active Display Size (Horizontal) 13.55"
Active Display Size (Vertical) 7.62"
Display Screen Type LED
Screen Mode Full HD
Touchscreen Yes
Touchscreen Technology Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touch Points 10
Aspect Ratio 16:9
Contrast Ratio 500:1
Response Time 25 ms
Color Supported 262,000 Colors
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics
Network & Communication
Wireless LAN No
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
USB Type-C Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Number of Micro USB 2.0 Ports 2
Number of USB 3.0 Ports 2
Number of USB Type C Ports 1
Built-in Devices
Number of Speakers 2
Speaker Power 2 W
Software
Operating System Windows 11 IoT Enterprise LTSC (64-bit)
Power Description
Power Source
  • DC Power
  • AC Power
Physical Characteristics
Color Family Black
Product Color Black
Weight (Approximate) 7 lb
