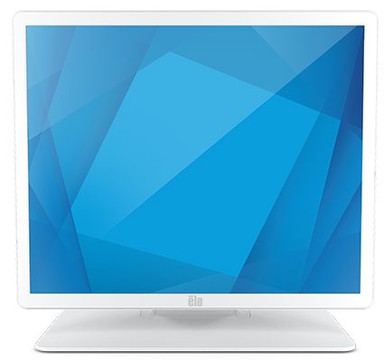

Elo 1903LM, 48.3 cm (19''), Projected Capacitive, 10 TP, white

SKU:

E380665

TFT screen, 5:4, 48.3 cm (19''), Projected Capacitive, multi touch (10 points), resolution: 1280x1024 pixels, VESA mount (100x100 mm), DICOM 14, 14ms, brightness: 225cd, viewing angle: 178/178°(H/V), contrast: 1000:1, USB (type A, type B, micro-USB), VGA, HDMI, touch interface: USB, RS232, protection class: IP54, incl.: cable (USB, VGA, Audio, HDMI), power supply unit, power cable (EU, US), colour: white
Description
ico-plus ico-minus

The Elo 1903LM Medical Grade Touchscreen Monitor is a state-of-the-art 19-inch LCD display designed specifically for healthcare environments. Merging advanced touch technology with DICOM Part 14 compliance, this monitor enhances clinical workflows while elevating patient engagement. Its compact form factor and sleek design make it ideal for EMR documentation, image review, and collaboration within labs and pharmacies. With an IP54 rating, it assures durability and reliability in various medical settings.


Key Features
  • 19-inch LCD with Medical Grade compliance
  • TouchPro PCAP technology for precision touch functionality
  • DICOM Part 14 designed for consistent image review
  • Integrated 10-touch capability for enhanced usability
  • IP54 certified to withstand healthcare environments
  • Multiple mounting options including stands and wall mounts

Specifications
  • Color: Black or White
  • Diagonal Size: 19" (482.6 mm)
  • Active Touch Area: 14.76" x 11.80" / 374.78 mm x 299.83 mm
  • Touch Technology: TouchPro PCAP
  • Number of Touches: 10
  • Native Resolution: 1280 x 1024
  • Brightness: Panel 250 nits; with TouchPro PCAP 225 nits
  • Viewing Angle: Horizontal 178°, Vertical 178°
  • Weight: Unpackaged with stand 13.9 lbs / 6.3 kg
  • Operating Temperature: 0°C to 40°C
  • Warranty: 3 years standard

Main Features

  • Touch: Yes

  • Screen size: 19 inch

  • Connection: USB

  • Screen type: Capacitve

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 19"
Viewable Screen Size 19"
Screen Mode SXGA
Panel Technology Thin Film Transistor (TFT)
Response Time 14 ms
Aspect Ratio 5:4
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type
  • Wall Mountable
  • Floor-mountable
  • Pole Mount
Backlight Technology LED
Features
  • Anti-glare
  • On-screen Display (OSD)
  • OnScreen Control
Horizontal Frequency 30 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Video
Maximum Resolution 1280 x 1024
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 250 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
Number of USB Ports 4
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Product Color
  • Black
  • White
Height 14"
Width 16.9"
Depth 1.6"
Height with Stand 15.65"
Width with Stand 16.91"
Depth with Stand 7.61"
Weight (Approximate) 9.48 lb
Weight with Stand (Approximate) 13.90 lb
Documents
ico-plus ico-minus
Product document 1903lm-2021.pdf E380665 Product document mod-03-series-elo-monitor-datasheet.pdf MOD-03-SERIES Product document mod-03-series-elo-monitor-user-manual.pdf MOD-03-SERIES
