Elo

Elo 2794L rev. B, 68,6 cm (27''), IT, Full HD, black

SKU:

E329262

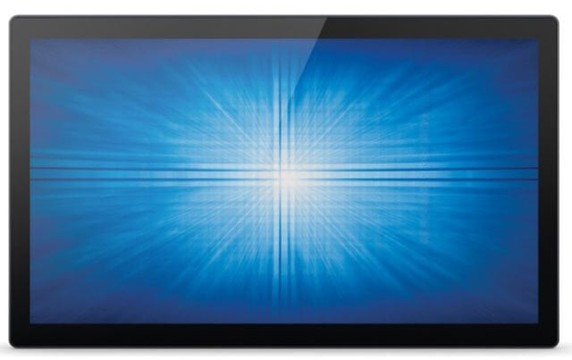

The Elo E329262 is a 27-inch open-frame LCD touchscreen built around IntelliTouch Surface Wave technology, delivering 1920 x 1080 Full HD resolution at 300 Nit brightness with a 3,000:1 contrast ratio and 12 ms response time. Its LED backlight keeps operating power consumption to 27 W, and the 16:9 panel reproduces 16.7 million colors across a viewable area suited to front-mount integration in kiosks, retail self-service, and industrial automation enclosures. Video connectivity spans HDMI, DisplayPort, VGA, and USB, and the unit ships with HDMI, VGA, and USB touch cables plus an RJ45 OSD remote and L-bracket side-mount hardware. Measuring 24.9 in wide by 14.7 in tall and 1.7 in deep at 16.10 lb, it is VESA mount compatible and TÜV certified, with RoHS and WEEE environmental compliance and a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Elo 1590L 15-inch open-frame LCD touch display offers an exceptional touchscreen experience, tailored for kiosks, retail, industrial automation, and gaming applications. Designed with Elo's renowned reliability, this display features an energy-efficient LED backlight for lower heat output and power consumption. The Elo 1590L combines advanced multi-touch technology with various touch options, ensuring accuracy and durability. With easy integration and a sealed touchscreen against dirt and moisture, this display is a versatile choice for businesses seeking quality and performance at an economical price point.


Key Features
  • Choice of Touch Technologies: Projected Capacitive, IntelliTouch SAW, SecureTouch, and AccuTouch.
  • Sealed Touchscreen: Protection against dirt, dust, and liquids for easier integration.
  • Vivid Image Clarity: Outstanding clarity and light transmission for precise touch responses.
  • Energy-efficient: State-of-the-art LED backlight reduces electricity use and heat generation.
  • Durable Build: Designed for long-lasting performance with stringent testing and support.

Specifications
  • Model: 1590L
  • Color: Black
  • Active Display Area: 304 x 228 mm (12 x 9 inches)
  • Diagonal: 15"
  • Aspect Ratio: 4:3
  • Native Resolution: 1024 x 768 at 60, 75 Hz
  • Brightness: 250 nits (LCD Panel)
  • Viewing Angle: Horizontal: 80°/160°; Vertical: 70°/140°
  • Weight: Unpackaged: 6.4 lbs (2.9 kg); Packaged: 7.7 lbs (3.4 kg)
  • Warranty: 3 years
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Humidity: Operating: 20% to 80%; Storage: 10% to 95%

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 27"
Viewable Screen Size 27"
Screen Mode Full HD
Response Time 12 ms
Aspect Ratio 16:9
Mount Type Front Mount
Backlight Technology LED
Video
Maximum Resolution 1920 x 1080
Color Supported 16.7 Million Colors
Contrast Ratio 3,000:1
Brightness 300 Nit
Touchscreen Information
Touchscreen Type IntelliTouch Surface Wave
Interfaces/Ports
HDMI Yes
USB Yes
VGA Yes
DisplayPort Yes
Power Description
Operating Power Consumption 27 W
Physical Characteristics
VESA Mount Compatible Yes
Color Family Black
Product Color Black
Height 14.7"
Width 24.9"
Depth 1.7"
Weight (Approximate) 16.10 lb
Miscellaneous
Package Contents
  • 2794L 27" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards
  • TÜV
    		•
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • China Restriction of Hazardous Substances (China RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    Limited Warranty 3 Year
    Documents
    ico-plus ico-minus
    Product document 2794l-2021.pdf E329262  (PDF)
