Datalogic

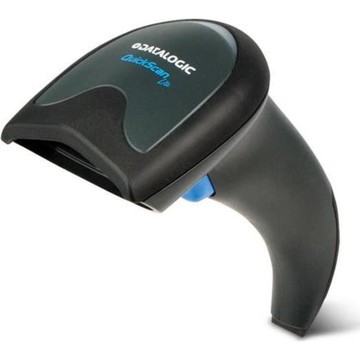

Datalogic QuickScan Lite QW2120 Barcode Scanner Imager, 1D, 400 scan/s, USB, Black

SKU:

QW2120-BK-RM

Datalogic QuickScan I Lite QW2100 barcode scanner — QuickScan Lite USB Black Imager delivering compact, user-friendly 1D scanning with USB connectivity for point-of-sale and general data capture. Attributes: Data Capture Imager Type Interfaces Interface Supported Symbologies Symbology Scan Speed Scan Rate POS pos cordless Bluetooth Color Product Color Form Factor Ingress Protection Rating Reading Distance Scanner Range Included Accessories Included accessories Aimer Type Stand Included
Description
ico-plus ico-minus

The DataLogic QuickScan QW2100 Barcode Scanner is a versatile and reliable entry-level linear imager that excels in reading long and truncated barcodes, making it ideal for retail, light manufacturing, banking, and document processing environments. Its ergonomic design ensures comfort for daily use, while the lightweight and compact structure facilitates portability. With its snappy read performance, thin and bright scanning line, and Datalogic's patented Green Spot technology for good-read feedback, this scanner is a perfect fit for various applications where efficiency is paramount.


Key Features:

  • Wide scan angle for enhanced usability
  • Thin, extended scan line for capturing longer barcodes
  • Two interface options: USB or Keyboard Wedge / RS-232
  • Drop-resistant to withstand accidents (up to 1.5 m / 5 ft)
  • Compact, multi-position stand for hands-free operation

Specifications:

  • Decoding Capability: 1D/Linear Codes, Postal Codes, Stacked Codes
  • Electrical:
    • Current: < 180 mA @ 5 VDC
    • Input Voltage: 5 VDC +/- 0.5 V
  • Environmental:
    • Drop Resistance: Withstands drops from 1.5 m / 5.0 ft
    • Humidity: 5-95% (Non-Condensing)
    • IP Rating: IP42 (Particulate and Water Sealing)
  • Physical Characteristics:
    • Dimensions: 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
    • Weight: 119.0 g / 4.2 oz
  • Warranty: 3-Year Factory Warranty

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: Black

  • IP Rating: IP42

  • Range: Short Range

  • Connectivity: Corded

  • Connection: RS232, USB

  • Scanner Capability: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported 1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
Postal Codes:
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Image Sensor Type Imager
Scan Rate 400 scan/s
Maximum Scan Resolution 4 mil
Depth of Field
Scan Pattern Omni-directional
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Product Color Black
Height 6.7"
Width 2.6"
Depth 2.8"
Weight (Approximate) 4.20 oz
Miscellaneous
Additional Information

USB Cable separate
Country of Origin Vietnam
Documents
ico-plus ico-minus
Product document mod-qw2100-datalogic-handheld-readers-datasheet.pdf QW2120-BK-RM Product document mod-qw2100-datalogic-handheld-readers-user-manual.pdf QW2120-BK-RM Product document datalogic-qw2100.pdf QW2120-BK-RM Product document qw2100-2021.pdf MOD-QW2100
