Datalogic

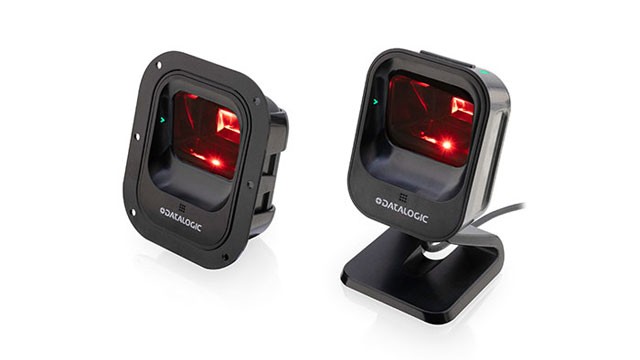

Datalogic Magellan 900i Barcode Scanner Black, Kiosk Mount, USB Keyboard 1m cable, Omnidirectional, 1D/2D

SKU:

MG0902-11000-0204

Configured as a kiosk-mount kit with a 1 m USB keyboard cable, the Datalogic MG0902-11000-0204 is a desktop presentation scanner that reads both 1D and 2D barcodes through a 1280 x 800 imager across an omni-directional, area scan pattern. It reaches up to 11 in scanning distance and accepts barcodes at a 70-degree skew, 70-degree pitch and 360-degree roll tolerance, making orientation a non-issue at busy counters. DataMatrix codes down to 10 mil and up to 15 mil are resolved at a minimum print contrast of 25%, while the LED illuminator and LED aimer support accurate targeting in ambient light up to 86100 lux. Beep and notification LED good-read feedback, Checkpoint EAS integration and image capture in JPEG and BMP formats round out the feature set. USB and serial host interfaces are supported, and the unit carries an IP52 rating for dust and water resistance across an operating range of 32°F (0°C) to 104°F (40°C). It suits retail, pharmacy, healthcare, convenience store and commercial service deployments where counter space is limited.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Magellan 900i is a corded presentation scanner engineered for high-volume point-of-sale, kiosk and service-counter environments where speed, reliability and ergonomics matter. Built around a 2D area imager with omnidirectional capture and adaptive red illumination, the 900i reads printed and on-screen 1D/2D barcodes, handles damaged or truncated labels and supports OCR and image capture workflows. Its compact presentation form factor, adjustable stand and optional kiosk or magnetic mounts make integration into tight counters and self-service stations straightforward, while Green Spot visual confirmation, audio feedback and commercial-grade protection ensure consistent, user-friendly operation in retail, pharmacy and hospitality settings.

Key Features

  • Omnidirectional 2D imaging: Fast, reliable capture of 1D and 2D barcodes without precise alignment, reducing transaction time at busy checkouts.
  • Adaptive illumination & feedback: Adaptive red illumination plus Green Spot visual confirmation and audio feedback improve first-pass read rates and operator confidence.
  • Flexible deployment: Presentation and handheld operating modes with adjustable stand, kiosk mount and magnetic mounting options for compact counters or self-service kiosks.
  • Robust for daily use: IP52 ingress protection, ESD protection and a no-moving-parts design deliver dependable performance in commercial retail and service environments.
  • Extended functionality: Image capture and OCR support expand use beyond barcode decoding for ID capture and documentation workflows.

Specifications

  • Product Name: Magellan 900i
  • Brand: Datalogic
  • Category: Presentation Scanners
  • Scanner Type / Imaging: 2D area imager, omnidirectional (1D, 2D)
  • Scanning Mode: Omnidirectional
  • Connectivity / Interfaces: USB; available RS-232, OEM
  • USB Connection: Single USB connection for power and data (variants include USB keyboard cable)
  • Mount Types: Stand, Magnetic mount, Kiosk mount
  • Operating Modes: Presentation, Handheld (hands-free or handheld)
  • Illumination: Adaptive red illumination
  • Visual Feedback Technology: Green Spot
  • LED Aimer: Yes (in applicable variants)
  • Image Capture: Yes
  • OCR Supported: Yes
  • GS1 Digital Link Supported: Yes
  • Ingress Protection Rating: IP52 (commercial)
  • ESD Protection / ESD Safe: Yes
  • Included Components (examples): Stand, magnetic mount, USB keyboard cable (1 m or 2 m), corded kit
  • Supported Barcode Symbologies: 1D, 2D and common symbologies; handles truncated, poorly printed or damaged labels
  • Maximum Working Distance: 28 cm (variant)
  • Weight: 0.44 lbs (typical)
  • Model examples / MPNs: MG0901-10000, MG0901-10001-0200, MG0901-10001-1100, MG0902-11000-0204

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Range: Short Range

  • Connection: RS232, USB

  • Scanner Capability: Imager, 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Light Source LED
Image Sensor Type Imager
Scan Pattern
  • Area
  • Omni-directional
Scanning Distance 11"
Features
  • Beep
  • Notification LED
  • Ergonomic Design
  • Checkpoint EAS
Cable Type Included USB
Reading Angle (Skew) 70°
Reading Angle (Pitch) 70°
Reading Angle (Roll) 360°
Image Formats
  • JPEG
  • BMP
Maximum Ambient Light 86100 lux
Minimum Print Contrast 25%
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 15 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Air Electrostatic Discharge (+/-) 25kV
Interfaces/Ports
Host Interface
  • USB
  • Serial
Environmental Conditions
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Desktop
Color Family Black
Product Color Black
Durability
  • Water Resistant
  • Dust Resistant
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Commercial Service
  • Healthcare
  • Laboratory
  • Pharmacy
  • Convenience Store
Documents
ico-plus ico-minus
Product document magellan-900i.pdf MG0902-11000-0204 Product document magellan-900i.pdf MOD-MAGELLAN-900I
