Datalogic

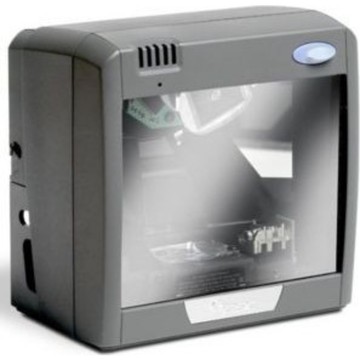

Datalogic Magellan 2200, 1D, multi-IF, vertical, anthracite

SKU:

M220E-00101-00000R

The Datalogic M220E-00101-00000R is a vertical, desktop-form-factor 1D barcode scanner delivering an omni-directional scan pattern at 100 scan/s across a 6-inch scanning distance -- figures that suit medium-to-high-volume POS checkout lanes in drug stores, convenience stores and specialty retail environments. It reads all standard 1D linear codes along with GS1 DataBar Linear, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omni-directional symbologies via cable connectivity. Host interface options include Keyboard Wedge, USB and Serial, giving it broad integration flexibility. The unit measures 6 inches high by 3.8 inches wide by 6 inches deep and weighs 2.50 lb; the USB cable is sold separately.
Prices could not be updated.
Description
ico-plus ico-minus
The Datalogic Magellan 2200VS is a wired, on-counter vertical presentation barcode scanner built for retail point-of-sale environments where counter space is limited and transaction throughput matters. Designed specifically for drug stores, convenience stores, smaller to medium-sized grocery stores, DIY stores, and specialty stores, it uses a laser light source with a linear scan pattern across 20 scan lines and a 6,000 rpm motor speed to deliver fast, consistent reads of all standard 1D and GS1 DataBar linear codes. FirstStrike advanced decoding software improves first-pass read rates on damaged, wrinkled, or poorly printed labels, reducing checkout friction. Flash memory enables in-field firmware upgrades to extend the scanner's service life, while a multi-interface design supporting Serial, USB, IBM 46xx, and Keyboard Wedge connections ensures compatibility with a broad range of existing POS host systems. A powered auxiliary RS-232 port allows easy integration of a handheld scanner, and optional EAS compatibility and Diagnostic Reporting further extend its value in demanding retail deployments.

Main Features

  • Connection: Serial, USB

  • Barcode Type: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported

1D / Linear Codes:

  • Auto Discriminates All standard 1D codes
  • GS1 Databar Linear Codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omni directional
Scan Rate 100 scan/s
Scan Pattern Omni-directional
Scanning Distance 6"
Interfaces/Ports
Host Interface
  • Keyboard Wedge
  • USB
  • Serial
Physical Characteristics
Form Factor Desktop
Height 6"
Width 3.8"
Depth 6"
Weight (Approximate) 2.50 lb
Miscellaneous
Additional Information

USB Cable separate
Documents
ico-plus ico-minus
Product document mod-magellan2200-datalogic-presentation-readers-datasheet.pdf M220E-00101-00000R  (PDF) Product document mod-magellan2200-datalogic-presentation-readers-user-manual.pdf M220E-00101-00000R  (PDF) Product document datalogic-magellan-2200.pdf M220E-00101-00000R  (PDF)
FAQs
ico-plus ico-minus
What host interfaces does the Datalogic Magellan 2200VS support?
The Magellan 2200VS supports IBM 46xx, Keyboard Wedge, OEM (IBM) USB, RS-232, and USB interfaces, giving it a multiple-interface solution compatible with all popular host systems. It also includes a powered auxiliary RS-232 port for integrating a handheld scanner or accessing label data output.
What barcode types can the Datalogic Magellan 2200VS read?
The scanner autodiscriminates all standard 1D and linear codes including GS1 DataBar linear codes, and also reads stacked codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, and GS1 DataBar Stacked Omnidirectional.
What retail environments is the Datalogic Magellan 2200VS designed for?
It is tailored for very small counter retail checkout environments with medium to high volume POS transactions, and is particularly effective in drug stores, convenience stores, smaller to medium sized grocery stores, DIY stores, and specialty stores.
What are the physical dimensions and weight of the Datalogic Magellan 2200VS?
The scanner measures 15.2 x 15.2 x 9.7 cm (6.0 x 6.0 x 3.8 in) and weighs 1.1 kg (2.5 lb), with a read height of 15.2 cm (6.0 in) and a motor speed of 6,000 rpm across 20 scan lines.
What is included in the box with the Datalogic Magellan 2200VS?
The package includes the Magellan 2200VS bar code reader, a standard counter mount, and a 15 ft. IBM 46XX Port 9B POT cable.
What warranty does the Datalogic Magellan 2200VS carry?
The Magellan 2200VS is covered by a 3-Year Factory Warranty.
