Datalogic

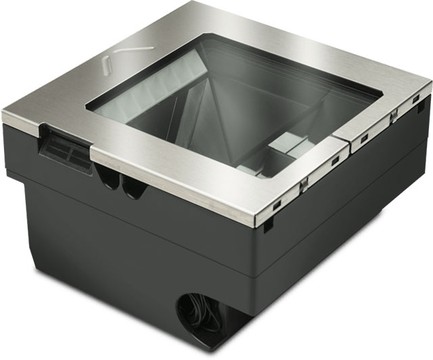

Datalogic Magellan 3510HSi Barcode Scanner 2D, Without Platter, USB, Multi-IF, Black

SKU:

M3510-010200

Magellan OmniScan 2D Black — Datalogic Magellan 3500HSi Barcode Scanner. Reliable retail-grade 2D imager designed for accurate and efficient barcode capture at the point of sale. Attributes: scanner_type supported_symbologies form_factor interface interfaces mount_type scan_capability supported_scan_types window_material connectivity ingress_protection_rating housing_material connector_type cable_length included_cable_length power_consumption power_consumption_nominal power_consumption_maximum power_source decoding_capability imaging_technology imager_type micro_sd_card_slot memory_slot power_supply_type dimensions_footprint weight color
Description
ico-plus ico-minus

The Datalogic Magellan 3550HSi Barcode Scanner revolutionizes high-volume point-of-sale environments with its advanced digital imaging capabilities. This high-performance scanner ensures seamless reading of 1D, 2D, and even poorly printed barcodes, boosting productivity and enhancing the customer experience. Equipped with ergonomic features and optional mobile commerce capabilities, it allows cashiers to streamline transactions efficiently while engaging customers. Designed for reliability, its solid-state electronics promise silent and efficient operation, making it an ideal choice for modern retail applications.


Key Features
  • Advanced Imaging: Fast, accurate reading of all barcode types including Digimarc®.
  • Customer Engagement: Optional Magellan Customer Service Scanner for mobile coupon scanning.
  • Remote Management: Supports OPOS, JavaPOS, and more for seamless integration.
  • Diagnostics Reporting: Easy troubleshooting and maintenance.
  • Flexible Software: Image capture and upgradeable capabilities for future needs.

Specifications
  • Decoding Capability:
    • 1D/Linear Codes: Includes GS1 DataBar™.
    • 2D Codes: Supports QR Code, Data Matrix and more.
    • Digital Watermarks: Optional support for Digimarc® barcodes.
  • Electrical:
    • AC Input: 100-240 VAC, 50-60 Hz.
    • Power Consumption: Operating (Nominal): 3 Watts.
  • Environmental:
    • Operating Temperature: 10 to 40 °C (50 to 104 °F).
    • Humidity: 5-95% non-condensing.
  • Physical Characteristics:
    • Dimensions: 8.7 cm (D) x 15.2 cm (L) x 15.2 cm (W).
    • Weight: 0.98 kg (2.16 lb).
  • Warranty: 3-Year Factory Warranty.

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Connection: RS232, USB

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code
  • Data Matrix
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417

Digital Watermarks:

  • Optional support for Digimarc Barcode/GS1 DW Code
Light Source LED
Image Sensor Type Imager
Scan Pattern Area
Scanner Range Standard Range
Features
  • Notification LED
  • Ergonomic Design
  • Diagnostic Reporting
  • Checkpoint EAS
  • Sensormatic EAS
  • Vibration
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 86100 lux
Minimum Print Contrast 25%
Image Sensor Resolution 1280 x 800
Illumination Type LED
Air Electrostatic Discharge (+/-) 25kV
Interfaces/Ports
Host Interface
  • USB
  • Serial
Power Description
Maximum Operating Power Consumption 3.30 W
Environmental Conditions
Operating Temperature 50°F (10°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor In-counter
Color Family Dual Color
Product Color
  • Black
  • Silver
Durability
  • Water Resistant
  • Dust Resistant
Width 6"
Length 6"
Weight (Approximate) 2.16 lb
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage Retail
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
