Datalogic

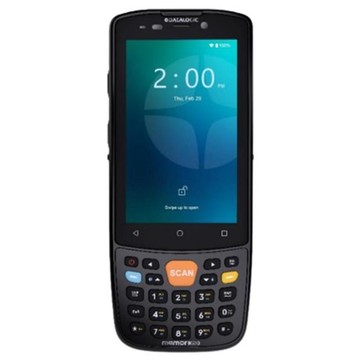

Datalogic Memor K20 Rugged Smart Scanner 4", Android 13, 4GB, 64GB, IP64, 5000mAh

SKU:

946200002

Fitted with a DE2102-HP scan engine capable of reading 1D and 2D barcodes across a depth of field of 1.6 to 35 in, the Datalogic 946200002 pairs that capture capability with a 4850 mAh Li-Polymer removable battery rated for up to 10 hours of continuous use. The octa-core 2 GHz processor works alongside 4 GB RAM and 64 GB of flash storage, with microSD and microSDHC expansion available. Android 13 with Google Mobile Services is upgradable to Android 15, and the 4-inch WVGA capacitive multi-touch display resolves at 800 x 480 with support for five simultaneous touchpoints. IEEE 802.11ac Wi-Fi, Bluetooth 5.0 BLE, NFC, and USB-C cover connectivity, while a 13 MP rear camera and OCR round out data capture. IP64-rated and MIL-STD-810H tested to survive drops from 1.5 m to concrete — 1.8 m with a rubber boot — it operates from -4°F (-20°C) to 122°F (50°C) and weighs 9.35 oz with battery, suiting retail, warehouse, healthcare, and hospitality workflows under a 1-Year Factory Warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Memor K20 is a compact Android mobile computer for retail, logistics, manufacturing and warehouse data collection. A backlit 24-key physical keypad works alongside a 4-inch touch display, allowing operators to combine tactile entry with application navigation.

The platform runs Android 13 with Google Mobile Services and provides barcode data capture for everyday mobile workflows. Choose the required accessories and application setup for the installation; specifications and capabilities of the cellular K25 version should not be applied automatically to the K20.

Main Features

  • Operating System: Android

  • Rugged: Commercial

  • Connection: Bluetooth, USB, NFC

  • Scan Range: Standard Range

  • IP Rating: IP64

  • Keypad: 34 Key Function Numeric

Documents
ico-plus ico-minus
Product document mod-k20-datalogic-handheld-terminals-datasheet.pdf 946200002  (PDF) Product document mod-k20-datalogic-handheld-terminals-quick-guide.pdf 946200002  (PDF) Product document mod-k20-datalogic-handheld-terminals-user-manual.pdf 946200002  (PDF)
FAQs
ico-plus ico-minus
What operating system does the Datalogic Memor K20 run, and is it upgradeable?
The Datalogic Memor K20 ships with Android 13 with Google Mobile Services and is upgradeable to Android 15, supporting broad enterprise application and device management compatibility.
How rugged is the Datalogic Memor K20, and what environments is it suited for?
The Memor K20 carries an IP64 protection rating and drop resistance to 1.5 m, making it suitable for continuous use in warehousing, retail, field service, and light manufacturing environments.
What are the processing and memory specifications of the Datalogic Memor K20?
It is powered by an octa-core 2.0 GHz processor paired with 4 GB RAM and 64 GB of flash storage.
What wireless and short-range connectivity options does the Datalogic Memor K20 support?
The device provides Wi-Fi 802.11ac, Bluetooth 5.0 BLE, NFC, and USB-C, covering enterprise network integration as well as peripheral and point-to-point communication needs.
How long will the Datalogic Memor K20 battery last, and can it be swapped during a shift?
The Memor K20 is equipped with a removable and replaceable high-capacity battery rated at 4850 mAh, which supports over 10 hours of intensive use, and the removable design enables quick battery swaps to keep the device operational across shifts.
What data capture capabilities does the Datalogic Memor K20 offer?
It features a 2D area imager with OCR support for barcode and text acquisition, complemented by a 13 MP rear camera, on a 4-inch capacitive multi-touch display with 800 x 480 px resolution and a 24-key function keypad for tactile input.
