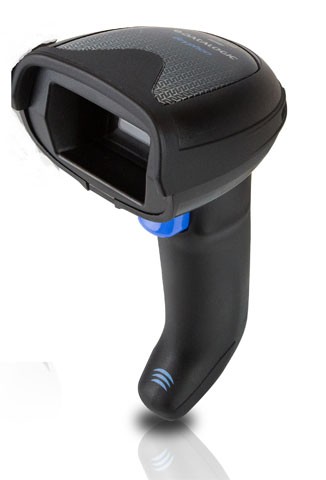

Datalogic Gryphon GBT4500 Barcode Scanner Bluetooth, Wireless Charging, Digimarc, Black

SKU:

GBT4500-BK-DGM-WLC

Datalogic Gryphon GBT4500 Handheld barcode scanner variant: Gryphon ChargeFree 2D Imager. A compact, ergonomic handheld scanner from the Gryphon GBT4500 family designed for professional scanning environments. Attributes: scanner capability connectivity imager resolution form factor wireless charging ingress protection rating
Description
ico-plus ico-minus

The DataLogic Gryphon I GBT4500 Barcode Scanner redefines efficiency and design in handheld scanning. Boasting advanced Megapixel sensor technology and chic ergonomics, this scanner delivers superior performance across various applications. With Bluetooth® and Datalogic's STAR Cordless System™, enjoy unparalleled flexibility in wireless communication. The innovative inductive charging feature ensures hassle-free maintenance, minimizing downtime. Ideal for retail, healthcare, and light manufacturing, it combines seamless usability with a robust design for a truly versatile scanning experience.


Key Features
  • High-performance 1MP sensor for optimal scanning of 1D and 2D codes
  • Inductive wireless charging for reliable, maintenance-free operation
  • Motionix™ technology for intuitive mode transitions between handheld and stand
  • Omnidirectional reading to enhance scanning efficiency
  • Available in High Density (HD) models for smaller code readability

Specifications
  • Wireless Communication:
    • Bluetooth® and Datalogic STAR Cordless System
    • Radio Frequencies: 433 MHz and 910 MHz
  • Battery:
    • Lithium-Ion, 3250 mAh
    • Charge Time: 4 Hours
    • Reads per Charge: 80,000
  • Reading Performance:
    • Maximum Resolution: 1280 x 800 pixels
    • Reading Angle: +/- 65° pitch, 360° roll
  • Environmental:
    • Operating Temperature: 0 to 50 °C
    • Drop Resistance: 1.8 m
    • IP52 Sealing
  • Dimensions: 16.6 x 6.8 x 10.9 cm / 235 g
  • Warranty: 3-Year Factory Warranty

Main Features

  • Rugged: Commercial

  • Case color: Black

  • Range: Standard Range

  • Connectivity: Cordless

  • Connection: Bluetooth

  • Scanner Capability: 2D, Imager, Digimarc

  • Battery Features: Wireless Charging

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D / Linear Codes:

  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes
Light Source Laser
Image Sensor Type Imager
Scan Pattern Omni-directional
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 35 in/s
Image Formats
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light 100000 lux
Drop Specification

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast 15%
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color Red
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Power Description
Input Current 330 mA
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3250 mAh
Environmental Conditions
Operating Temperature 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 95%
Physical Characteristics
Form Factor Handheld
Product Color Black
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage
  • Light/Clean Manufacturing
  • Retail
  • Healthcare
  • Transportation
  • Commercial Service
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document gbt4500.pdf GBT4500-BK-DGM-WLC Product document gbt4500.pdf MOD-GRYPHON-GBT4500
