Datalogic

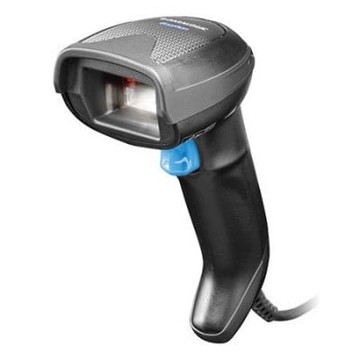

Datalogic Gryphon I GD4590 Barcode Scanner 2D, Omni-directional, Multi-interface, IP52, White illumination, Black

SKU:

GD4590-BK

Most handheld scanners focus on basic barcode reads, but the Gryphon Pro 2D Imager combines omni-directional 1D and 2D scanning with white illumination and a 1280 x 800 imager for faster, more accurate capture. Designed for retail, healthcare, transportation, and similar demanding environments, it delivers reliable performance, clear good-read feedback, and rugged drop resistance in a black handheld form factor.
Description
ico-plus ico-minus

The Datalogic Gryphon Pro is a professional handheld barcode scanner family designed for demanding retail, healthcare and point-of-sale environments where reliability, hygiene and accurate data capture are essential. Based on the Gryphon GD4500 platform, this scanner line combines high-density 2D imaging with Mpixel/megapixel sensors, white illumination and visual good-read feedback to ensure fast, first-pass decoding of 1D and 2D codes, postal and stacked symbologies. Variants offer disinfectant-ready or antimicrobial housings, IP52 protection and multiple wired interface options (USB-C, USB-A, RS232, KBW), plus included stands and permanent bases for convenient presentation scanning—making the Gryphon Pro a flexible, easy-to-integrate solution for clinical, retail and back-office workflows.

Key Features

  • High-density 2D imaging: Mpixel/megapixel imagers deliver accurate capture of dense and small 2D barcodes for reliable first-pass reads.
  • Hygiene-ready enclosures: Disinfectant-ready and antimicrobial housing options support routine cleaning protocols in healthcare and hygiene-sensitive settings.
  • Clear read confirmation: Green Spot good-read feedback and 3GL indicators provide immediate visual confirmation to speed operator workflows.
  • Flexible wired connectivity: Multi-interface choices including USB-C, USB-A, RS232 and KBW simplify integration with POS, workstations and legacy systems.
  • Rugged everyday use: IP52 ingress protection, commercial-grade durability and included stands/permanent bases support stable, long-term deployment.

Specifications

  • Brand: Datalogic
  • Product Name: Datalogic Gryphon Pro
  • Category: Handheld Barcode Scanners
  • Form Factor: Handheld scanner
  • Scan Symbology: 2D
  • Imager Type: Mpixel / Megapixel imager
  • Supported Symbologies: 1D, 2D, Postal, Stacked (varies by variant)
  • Illumination Color: White
  • Color: Black
  • Housing: Disinfectant-ready / Antimicrobial (variant dependent)
  • Interfaces: USB-C, USB (USB-A), RS232, KBW (multi-interface options)
  • Ingress Protection Rating: IP52
  • Green Spot Indicator: Yes
  • 3GL Indicator: Yes
  • Included Stand: Yes (variant dependent)
  • Included Permanent Base: Yes (variant dependent)
  • Imager Directionality / Scan Pattern: Omnidirectional / Area (variant dependent)

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: Black

  • IP Rating: IP52

  • Range: Short Range

  • Connectivity: Corded

  • Connection: RS232, Serial, USB

  • Scanner Capability: 1D, 2D, Digimarc, QR, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes
Light Source Laser
Image Sensor Type Imager
Scan Pattern Omni-directional
Features
  • Grayscale Image Capture
  • Beep
  • 3GL
  • Notification LED
  • Ergonomic Design
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 35 in/s
Image Formats
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light 100000 lux
Drop Specification

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast 15%
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 16kV
Interfaces/Ports
Host Interface
  • Keyboard Wedge
  • USB
  • Serial
  • Multi-interface
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Durability Drop Resistant
Weight (Approximate) 5.68 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage
  • Healthcare
  • Retail
  • Light/Clean Manufacturing
  • Transportation
  • Commercial Service
  • Laboratory
  • Pharmacy
Country of Origin Vietnam
Documents
ico-plus ico-minus
Product document gd4500.pdf GD4590-BK Product document gd4500-2021.pdf MOD-GD4500
FAQs
ico-plus ico-minus
What barcode types can the Datalogic Gryphon GD4500 read?
The Gryphon GD4500 supports 1D, 2D, postal, and stacked symbologies using a Megapixel imager with white illumination, enabling accurate first-pass decoding across a broad range of code types including QR codes and DPM codes.
What wired interface options does the Datalogic Gryphon GD4500 support?
The GD4500 offers multiple wired interface options including USB-C, USB-A, RS232, and KBW, making it straightforward to integrate with modern POS systems, workstations, and legacy hardware.
Is the Datalogic Gryphon GD4500 suitable for healthcare or hygiene-sensitive environments?
Yes, the GD4500 is available with disinfectant-ready and antimicrobial housing options designed to withstand routine cleaning with harsh disinfectant solutions, and it carries an IP52 ingress protection rating.
How does the Datalogic Gryphon GD4500 confirm a successful scan to the operator?
The GD4500 provides Green Spot good-read feedback projected onto the barcode itself, along with 3GL indicators, giving operators immediate visual confirmation without needing to look away from the work surface.
Does the Datalogic Gryphon GD4500 support both handheld and hands-free presentation scanning?
Yes, the GD4500 uses Datalogic's Motionix motion-sensing technology to automatically switch between handheld and presentation scanning modes, and compatible stands and permanent bases are included with certain configurations to support counter-top deployment.
