Datalogic

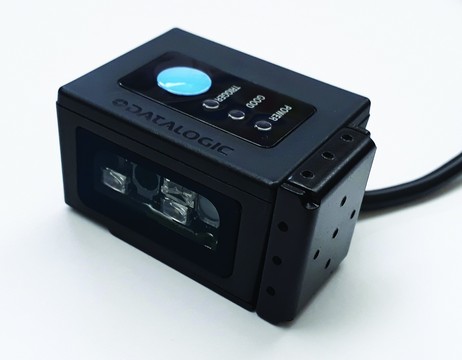

Datalogic DSM04XX Fixed Scan Module
SKU:
MOD-DSM04XX
The DSM04XX Fixed Scan Module offers high performance fixed position scanning in a compact form factor for a wide range of industries such as, Healthcare, Retail and Manufacturing. Available in WVGA and Megapixel models with different Field of View and Depth of Field. The Wide-Angle model is particularly useful for embedded applications where space is at a premium. With interface options of USB, RS-232, or both the DSM04XX Fixed Scan Module provides simple electrical and mechanical integration for system designers. A RUGGED CONSTRUCTION with high impact resin that is resistant to cleanings solvents and disinfectant solutions make this scanner ideal for lab testing equipment, self-checkout or access control. The included mounting hardware allows mounting from all sides of the device at any angle. For integrators who must support multiple platforms and applications the DSM04XX Fixed Scan Module is the solution you need.
Select model
Description
The Datalogic DSM04XX Fixed Barcode Scanner is your go-to solution for high-performance fixed position scanning in a compact design. Available in both WVGA and Megapixel models, it is tailor-made for applications where space is limited. With its rugged construction, featuring an IP54 rating for water and particulate sealing, this scanner offers reliable performance in various environments. Its simple integration options make it a perfect fit for system designers, allowing seamless connectivity via USB, RS-232, or multi-interface models.
Key Features
Specifications
Key Features
- Compact Design: Ideal for embedded applications.
- Rugged Enclosure: Made with high-impact resin resistant to solvents.
- Multi-Interface Support: Easy 'plug-and-play' installation.
- Excellent Motion Tolerance: Capable of image capture and document scanning.
- Datalogic 'Green Spot' Technology: Provides visual feedback for successful scans.
Specifications
- Model Options:
- DSM0421: 2D, WVGA, USB
- DSM0400: 2D, MP-DL, USB/RS-232/RJ-45
- Reading Performance:
- Field of View: Up to 52°H x 40°V
- Maximum Resolution: 2 mils
- Reading Range: Up to 60 cm for 20 mils Code 39
- Electrical:
- Input Voltage: 5 VDC ± 5%
- Operating Current: Approx. 214 mA
- Environmental:
- Temperature: Operating -20 to 50°C
- Humidity: 5-95%, non-condensing
- Sealing Rating: IP54
Documents
dsm04xx.pdf MOD-DSM04XX
