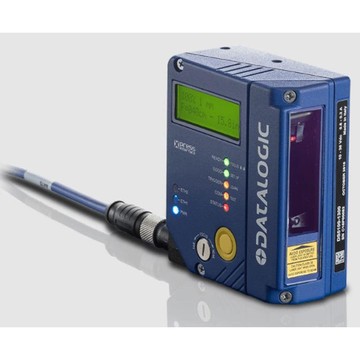

DATALOGIC, DS5100, SCANNER, MEDIUM RANGE, SERIAL

The DataLogic DS5100 Barcode Scanner is a compact and powerful solution designed for diverse industrial applications, including automotive, food and beverage, and pharmaceutical sectors. This cutting-edge laser scanner offers medium and long-range models, delivering exceptional reading performance even on low-quality barcodes or damaged labels. Its robust design features top-grade IP65 protection, making it perfect for use in harsh environments, including sub-zero temperatures. With easy installation and advanced connectivity options, the DS5100 is the perfect choice for any manufacturing setup, ensuring efficiency and reliability on the assembly line.

• Flexible Options: Medium and Long Range, Linear and Oscillating Mirror models.
• Robust Performance: Features DST technology for consistent operation.
• Easy Installation: Rotating connector block enhances setup flexibility.
• User-Friendly Tools: Includes X-PRESS interface and Genius software for quick maintenance.
• Industry Versatile: IP65 rated and subzero model available for extreme conditions.

• Reading Distance: Medium Range: 200 - 1000 mm; Long Range: 300 - 1400 mm
• Scan Rate: 800 scans/second
• Focus Adjustment: Mechanically adjustable focus with locking
• Dimensions: LIN: 101 x 85 x 42 mm; OM: 116.7 x 123.6 x 48.4 mm
• Weight: LIN: 580 g; OM: 775 g
• Operating Temperature: 0° to +50 °C; Subzero Version: -35° to +50 °C
• IP Rating: IP65
• Embedded Communications: EtherNet/IP, PROFINET-10, various Fieldbus options
