Datalogic

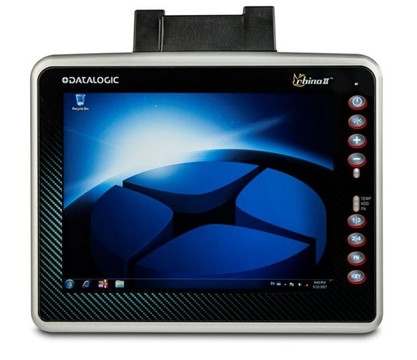

12", CAP STD, VDC 12-48V Int. Ant., 240GB (SSD), Summit PE15N, i5core 16GB RAM, Win10 IoT

SKU:

94R515245

Configured with 16 GB RAM and a 240 GB solid-state drive, the Datalogic 94R515245 is a vehicle mount terminal built around an Intel Core i5 processor and running Windows 10 IoT. Its 12-inch projected capacitive touchscreen supports gloved-hand operation through 3 mm anti-glare armored glass, while a DC power input rated 12-48 V covers a broad range of vehicle electrical systems. The IP65-rated sealed enclosure protects against dust and water ingress in demanding warehouse and factory floor environments. Wireless connectivity is handled by the Summit PE15N radio with an internal antenna, keeping the unit compact for forklift and in-vehicle mounting. The Rhino II platform is designed and manufactured for sustained operation in industrial settings.
Prices could not be updated.
Description
ico-plus ico-minus

The Rhino II™ Vehicle Mounted Computer is designed for rugged use in demanding warehouse environments. Available in 10" and 12" display sizes, it boasts an IP65/IP67 sealed design, ensuring durability against dust and moisture. Its integrated display heater allows seamless operation in cold storage facilities. Enhanced with a capacitive touch screen covered by 3 mm anti-glare armored glass, users can operate it even while wearing gloves. The Rhino II’s efficient design boosts productivity during various warehouse tasks like receiving, picking, and shipping, making it an essential tool for modern logistics operations.


Key Features
  • Multiple Operating Systems: Windows Embedded Compact 7, Windows 10 IoT Enterprise, and Android 7.1 Nougat.
  • Display: High-resolution 10" or 12" anti-glare capacitive multi-touch screen.
  • Wireless Connectivity: WLAN and Bluetooth® 4.0 supported.
  • Sealed Protection: Rated IP65/IP67 for dust and water resistance.
  • Wide Temperature Range: Operates from -20°C to 55°C/-4°F to 131°F.

Specifications
  • Dimensions: 10 inch: 27.8 x 22.3 x 6.4 cm; 12 inch: 32.4 x 25.1 x 7.1 cm.
  • Weight: 10" models: 3.4 kg; 12" models: 4.7 kg.
  • Power Supply: 12 VDC; 24/48 VDC internal options available.
  • Humidity: Operating at 10 to 90% non-condensing.
  • Interfaces: 1 x GbE, 2 x USB 2.0, 1 x USB 3.0 (Win7/10 only), 2 x RS-232.
  • Operating Temperature: -20°C to 55°C; freezer model -30°C (-22°F).
  • Warranty: 1-Year Factory Warranty.

Main Features

  • Operation System: Windows

  • Rugged: Industrial

Technical Specifications
ico-plus ico-minus
Processor & Chipset
Processor Manufacturer Intel
Processor Type Core i5
Memory
Standard Memory 16 GB
Storage
Solid State Drive Capacity 240 GB
Display & Graphics
Screen Size 12"
Touchscreen Yes
Touchscreen Type Projected Capacitive
Power Description
Power Source DC
Software
Operating System Windows 10 IoT
Miscellaneous
Ingress Protection (IP) Rating IP65
