Datalogic

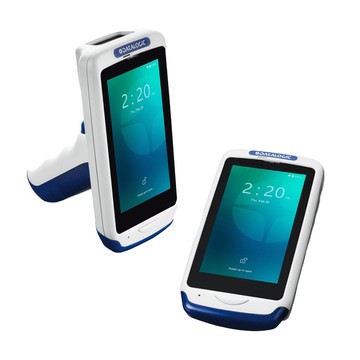

Datalogic Joya Touch 22 Mobile Computer Pistol-Grip, 4.3" Full Touch, Android 11, 2D 2-megapixel Imager, 4GB RAM, 32GB Flash

SKU:

911400032

Datalogic's 911400032 ships in a pistol-grip form factor with a 2D 2-megapixel imager, white LED illumination, and high-definition Green Spot feedback for barcode capture across 1D and 2D codes at scanning distances up to 16.50 in. A Qualcomm SDA660 processor running at 2.20 GHz drives Android 11 — upgradable to Android 13 — backed by 4 GB RAM and 32 GB of flash storage. The 4.3-inch FWVGA touchscreen renders at 854 x 480 and is protected by Gorilla Glass 3, while a Time of Flight sensor enables presentation mode for hands-free reading. IEEE 802.11 a/b/g/n/ac, Bluetooth 5.1, NFC, VoIP, and a USB Type-C port cover connectivity, and the device supports wireless charging via its removable 3300 mAh Li-Ion battery rated at 3.60 V. Operating temperature spans 14°F (-10°C) to 122°F (50°C), and the unit weighs 11.18 oz, with FCC and CE certifications covering retail, logistics, inventory management, and order-picking deployments.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Joya-Touch-22 Mobile Computer is a compact, enterprise-grade handheld designed for fast, reliable data capture across retail, warehousing, logistics and field-service environments. Combining a 1 MP 2D imager with Green Spot visual confirmation and presentation-mode support, the device accelerates barcode scanning and reduces transaction times at POS, pick stations and self-service points. Built on Android 11 with Google Mobile Services and powered by a Qualcomm 660 processor with 4 GB RAM and 32 GB storage, the Joya-Touch-22 pairs a 4.3-inch Gorilla Glass touchscreen with modern wireless connectivity, USB-C and wireless charging to deliver consistent performance, easy integration and practical durability for day-long operational use.

Key Features

  • Accurate 2D imaging: A 1 MP 2D imager with white/red illumination and Green Spot feedback enables fast, dependable barcode capture for 1D/2D codes.
  • Flexible form factors: Available as a compact handheld or pistol-grip model to improve ergonomics and throughput in repetitive scanning workflows.
  • Business-ready platform: Android 11 with Google Mobile Services supports enterprise apps and simplifies device management and deployment.
  • Robust connectivity: USB-C, Bluetooth 5.1, Wi‑Fi 802.11ac and NFC provide broad integration options for POS, back-office and cloud systems.
  • Workday endurance: A 3,300 mAh battery with wireless charging support helps maintain continuous operation across long shifts.
  • Durability & usability: Gorilla Glass touchscreen, commercial rugged design and features such as presentation-mode (ToF) and VoIP support optimize real-world usability.

Specifications

  • Brand: Datalogic
  • Product / Model: Joya Touch 22 (Joya-Touch-22 Mobile Computer)
  • Device Type: Handheld computer / portable data collection device
  • Scanner Type: 2D imager (megapixel)
  • Imager Resolution: 1 MP
  • Imager Illumination: White / Red
  • Scanner Features: Green Spot, presentation mode (ToF)
  • Screen Size: 4.3 in (10.9 cm)
  • Screen Resolution: 854 x 480 pixels
  • Screen Protection: Gorilla Glass
  • Operating System: Android 11
  • Google Mobile Services Included: Yes
  • Processor: Qualcomm SDA660 / Qualcomm 660
  • CPU Speed: 2.2 GHz
  • RAM: 4 GB
  • Internal Storage: 32 GB
  • Connectivity: USB-C, Bluetooth 5.1, Wi‑Fi 802.11ac, NFC
  • Wireless Charging: Yes
  • Battery Capacity: 3,300 mAh
  • Form Factor: Handheld or pistol grip
  • Weight: 285 g
  • Colors: Blue, grey, black, grey/orange
  • VoIP Support: Yes
  • Drop Resistance: 1.2 m
  • Operating Temperature Range: -10 to 50 °C

Main Features

  • Operation System: Android

  • Rugged: Commercial

  • Range: Standard Range

  • Camera: 2MP

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document mod-joya-touch-22-datalogic-handheld-terminals-datasheet.pdf 911400032  (PDF) Product document mod-joya-touch-22-datalogic-handheld-terminals-quick-guide.pdf 911400032  (PDF) Product document mod-joya-touch-22-datalogic-handheld-terminals-user-manual.pdf 911400032  (PDF)
FAQs
ico-plus ico-minus
What barcode symbologies does the Datalogic Joya Touch 22 support, and how does it confirm a successful scan?
The Joya Touch 22 uses a 1 MP 2D imager with white and red illumination to read both 1D and 2D barcodes. Green Spot visual feedback confirms each successful scan, and the device also supports presentation mode via a Time-of-Flight sensor for hands-free scanning scenarios.
What wireless connectivity options are built into the Datalogic Joya Touch 22?
The device includes Bluetooth 5.1, Wi-Fi 802.11ac, NFC, and USB-C for wired connection, giving it broad integration options for POS systems, back-office networks, and cloud platforms.
What are the key hardware specifications of the Datalogic Joya Touch 22?
It runs Android 11 with Google Mobile Services on a Qualcomm SDA660 processor clocked at 2.2 GHz, backed by 4 GB RAM and 32 GB internal storage, with a 4.3-inch Gorilla Glass touchscreen at 854 x 480 pixel resolution.
How durable is the Datalogic Joya Touch 22 for demanding retail or warehouse environments?
The Joya Touch 22 carries an IP54 rating, withstands drops of up to 1.2 m, and operates across a temperature range of -10 to 50 °C, making it suitable for both commercial and industrial rugged use.
How is the Datalogic Joya Touch 22 charged, and how long will the battery last through a shift?
The device is equipped with a 3,300 mAh rechargeable battery that supports wireless charging, including Boost Recharge for faster wireless top-ups, designed to sustain continuous operation across a full working day.
In what form factors and industries is the Datalogic Joya Touch 22 typically deployed?
The Joya Touch 22 is available as a standard handheld or in a pistol-grip configuration and is aimed at retail, warehousing, logistics, and field-service environments, covering use cases such as POS, pick stations, self-scanning, and self-service points.
