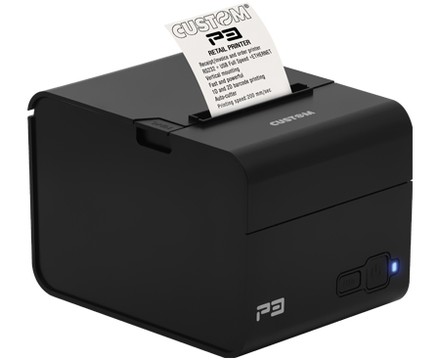

Custom America P3L Thermal Receipt Printer USB, RS232, Ethernet, 200mm/s, 80mm/58mm, 203dpi

The POS ThermalPro Printer (Custom P3) is a compact, business-grade thermal receipt printer engineered for demanding retail and hospitality environments. It delivers fast, reliable ticket and receipt output using fixed-head thermal technology, simplifying front-of-house and kitchen workflows with clear 203 dpi printing at up to 200 mm/s. Designed for flexible integration, the unit supports USB, RS232/Serial and Ethernet connections and accommodates common thermal paper formats (57/58/80 mm). Built-in automatic cutting, multiple sensors and broad barcode and font support reduce maintenance and improve uptime, making this printer suitable for point-of-sale counters, kiosks, restaurants and other high-volume transaction points that require dependable, low-maintenance printing.

Key Features

• High-speed printing: Up to 200 mm/s output to reduce customer wait times and streamline transaction flow.
• Triple connectivity: RS232/Serial, USB (Full Speed) and Ethernet interfaces for flexible integration into mixed POS environments.
• Automatic cutter: Built-in cutter (full or partial cut depending on model) simplifies receipt handling and improves throughput.
• Multi-format media support: Accepts common thermal paper widths (57 / 58 / 80 mm) and rolls up to 80 mm diameter for versatile deployment.
• POS-ready compatibility: CUSTOM/POS emulation, broad barcode sets and multilingual font support ease integration with existing POS systems.

Specifications

• Brand: Custom
• Product Name: POS ThermalPro Printer (Custom P3)
• Print Technology: Thermal line, fixed head
• Printing Speed: 200 mm/s
• Maximum Resolution: 203 x 203 dpi
• Interfaces: RS232 / Serial, USB Full Speed, Ethernet
• Paper Width Supported: 57 mm, 58 mm, 80 mm
• Paper Weight Supported: 55 - 90 g/m²
• Paper Thickness Supported: 63 - 140 µm
• Maximum Roll Diameter: 80 mm
• Auto-cutter: Automatic (full or partial cut)
• Auto-cutter Life: 1,000,000 cuts; some models offer 1,500,000 cuts
• Print Head Life: 150 km (typical)
• Supported Barcodes: 1D and 2D (e.g., UPC, EAN, CODE39, CODE128, PDF417, QRCode, DataMatrix)
• Emulation: CUSTOM/POS
• Print Directions Supported: 0°, 90°, 180°, 270°
• Memory: Flash and RAM options across models (examples: 1 MB + 4 MB external flash; 256 kB RAM)
• Sensors: Paper presence/low paper, head temperature, cover open (model dependent)
• Dimensions: 142 x 190 x 135.5 mm (common model)
• Weight: 1 – 1.1 kg (depending on model)
• Power Requirements: 24 Vdc ±10% (external or AC supply depending on model)
• Power Consumption / Typical Current: ~1.5 A (varies by model; examples: 1.5 A, 2.5 A)
