Custom

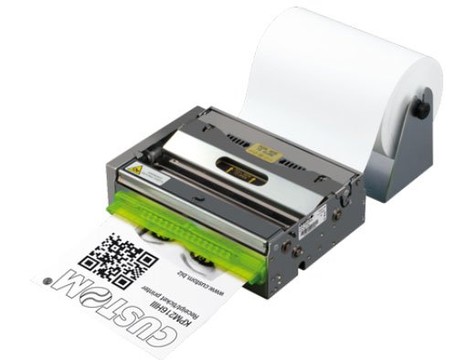

Custom KPM216HIII Direct Thermal Printer 210-216mm, 203 dpi, 200 mm/sec, Cutter, RS232, USB, Ethernet

SKU:

915AS050100700

Custom 216 Direct Thermal Printer is a robust kiosk and self-service printer built for large-format receipts, documents, reports, tickets, and labels. It supports 210 to 216 mm paper widths, uses thermal fixed-head printing at 203 dpi, and prints at over 200 mm/sec for fast output. With RS232, USB, and Ethernet connectivity, it is designed for reliable integration in demanding document and ticketing environments.
Description
ico-plus ico-minus

The KioskMaster Pro Printer (Custom KPM216) is a versatile thermal kiosk printer engineered for self-service, retail, ticketing and light industrial document workflows. Designed to handle wide-format media from 210 to 216 mm, it supports A4/Letter and large receipts, labels and tickets with both 203 dpi and 300 dpi output options and variable print speeds to suit throughput requirements. Multiple connectivity choices (RS232, USB or Virtual COM, Ethernet) and CUSTOM/POS emulation enable straightforward integration into existing POS and kiosk systems. With options such as a built-in cutter, ejector and robust construction, the KioskMaster Pro emphasizes reliable unattended operation, simplified media handling and long-term serviceability for B2B deployments.

Key Features

  • Wide-format media: Supports 210–216 mm paper widths for A4/Letter documents, large receipts, tickets and labels to accommodate varied kiosk outputs.
  • Flexible connectivity: RS232, USB (including Virtual COM) and Ethernet interfaces enable easy integration with POS, kiosk controllers and backend systems.
  • Resolution and speed options: Available in 203 dpi and 300 dpi variants with multiple print-speed profiles to balance clarity and throughput for different applications.
  • Automated paper handling: Built-in cutter and integrated ejector options streamline unattended operation and reduce manual intervention in self-service environments.
  • Durable, service-ready design: Commercial-grade construction with long print head life and high MCBF for dependable, continuous use in demanding deployments.

Specifications

  • Brand: Custom
  • Product Name: KioskMaster Pro Printer (Custom KPM216)
  • Printing Method / Technology: Direct thermal / Thermal with fixed head
  • Resolution: 203, 300 dpi
  • Printing Speed: 150 - 200 mm/sec (model-dependent)
  • Paper / Media Width: 210 - 216 mm
  • Supported Media: Receipts, tickets, labels; roll, fan fold, retracting; A4 / Letter
  • Paper Weight: 58 - 78 g/m²
  • Paper Thickness: 63 - 85 µm
  • Maximum Roll Diameter: 180 mm
  • Interfaces: RS232, USB (or Virtual COM), Ethernet
  • Emulation: CUSTOM/POS
  • Supported Barcodes: 1D and 2D
  • Head Life: 100 km / 100M pulses
  • MCBF (cuts): 300,000
  • Built-in Cutter: Yes (model-dependent / optional)
  • Ejector Included: Yes (model-dependent)
  • Graphic / Logo Memory: Up to 5 logos (examples: 1600 x 327 dots or 2368 x 327 dots)
  • Flash Memory: 2 MB internal; 8 MB external (SPI)
  • RAM Memory: 128 KB
  • Data Buffer: 19 KB
  • Printing Formats: Normal; height/width 1x–8x; reverse; underlined; script; bold
  • Printing Direction: 0°, 90°, 180°, 270°
  • Dimensions: 270 x 190 x 90 mm
  • Weight: 4.8 kg
  • Power Supply: 24 Vdc ±10%
  • Typical Current Consumption: 2.5 A (12.5% dots on)
  • Operating Temperature: 0 - 50 °C (32 - 122 °F)

Main Features

  • POS: Yes

  • DPI: 203 dpi

  • Connection: RS232, Serial, USB, Ethernet

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Ticket Print
Print Color Capability Monochrome
Maximum Mono Print Speed 7.87 in/s
Maximum Print Resolution (dpi) 203
Print Technology Direct Thermal
Memory
Standard Memory 19 KB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Cutter
Cutter Life 300000 Cuts
Media Types & Handling
Media Type
  • Receipt
  • Ticket
Maximum Roll Diameter 7.09"
Power Description
Power Source Power Adapter
Physical Characteristics
Weight (Approximate) 10.58 lb
Miscellaneous
Additional Information Paper width: 216mm
Platform Supported PC
Country of Origin Romania
FAQs
ico-plus ico-minus
What paper widths and media types does the Custom KPM216 support?
The KPM216 handles paper widths from 210 to 216 mm, covering A4/Letter documents, large receipts, tickets and labels in roll, fan fold and retracting formats, with paper weights between 58 and 78 g/m² and thicknesses between 63 and 85 µm.
Which connectivity interfaces does the Custom KPM216 offer for POS and kiosk integration?
It provides RS232, USB (including Virtual COM) and Ethernet interfaces, and supports CUSTOM/POS emulation for straightforward integration into existing POS and kiosk controller environments.
What print resolution and speed options are available on the Custom KPM216?
The KPM216 is available in 203 dpi and 300 dpi variants, with print speeds ranging from 150 to 200 mm/sec to balance image clarity and throughput for different deployment requirements.
How durable is the Custom KPM216 for continuous unattended operation?
The print head is rated for 100 km or 100 million pulses, and the built-in cutter is rated to a mean cuts between failures of 300,000, supporting long-term reliability in high-volume self-service environments.
What are the operating environment and power requirements for the Custom KPM216?
The printer operates between 0 and 50 °C (32 to 122 °F) and requires a 24 Vdc ±10% power supply with a typical current consumption of 2.5 A at 12.5% dot coverage.
Can the Custom KPM216 store logos or graphic assets for printed documents?
Yes, it supports storage of up to 5 logos in graphic memory, with example capacities of 1600 x 327 dots or 2368 x 327 dots, backed by 2 MB internal flash and 8 MB external SPI flash.
