CognitiveTPG DBT24-2085-G1P Label Printers
DBT24-2085-G1P
Select model

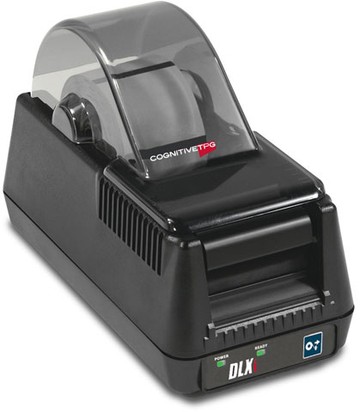

The **CognitiveTPG DLXi Barcode Label Printer** is engineered for exceptional durability and high-performance, making it an ideal choice for various industrial applications. With a robust metal construction and superior communication interfaces, the DLXi delivers fast print speeds of up to 5 inches per second. Designed to excel in challenging environments, this printer ensures a seamless transition from legacy models while maintaining top-notch reliability and quality for all your labeling needs.
Key features:
- Durable Metal Frame: Built to withstand rigorous conditions.
- Versatile Interfaces: Includes USB-A Host, Serial, Parallel, and Ethernet connections.
- Fast Print Speed: Up to 5 inches per second (127 mm/sec).
- Comprehensive Programming Support: Compatible with CPL, ECPL, and ZcPL languages.
- Standard 2-Year Warranty: Assurance of quality and reliability.
Specifications:
- Print Method: Direct Thermal or Thermal Transfer
- Max Print Width: 4.1" (104 mm)
- Max Print Length: 322" (8179 mm)
- Max Print Speed: 5 ips (127 mm/sec)
- Resolution: 203 dpi (8 dpmm)
- Media Width: 2" to 4.25" (50 mm - 108 mm)
- Roll Diameter: 4.7" (119 mm)
- Memory: RAM- 16 MB, Flash - 8 MB
- Operating Temperature: 41°F to 104°F (5°C to 40°C)
- Weight: 3.1 lbs. (1.41 kg) / 3.9 lbs. (1.77 kg)
- Warranty: 24 months from the date of purchase
Main Features
-
Equipment Format: Desktop
-
Rugged: Industrial
-
Connection: USB
-
Printing Technology: Thermal Transfer
| Technical Information | |
|---|---|
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 2.20" |
| Barcode Symbology Supported |
|
| Application/Usage | Desktop |
| Print Technology | Thermal Transfer |
| Memory | |
|---|---|
| Standard Memory | 16 MB |
| Memory Technology | SDRAM |
| Flash Memory | 8 MB |
| Interfaces/Ports | |
|---|---|
| Parallel Port | Yes |
| USB | Yes |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Maximum Roll Diameter | 4.70" |
| Maximum Label Width | 2.40" |
| Fonts & Emulation | |
|---|---|
| Language Emulation |
|
| Power Description | |
|---|---|
| Power Source |
|
| Input Voltage |
|
| Physical Characteristics | |
|---|---|
| Height | 6.1" |
| Width | 5" |
| Depth | 9.4" |
| Weight (Approximate) | 3.90 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Cables Included | USB |
| Power Adapter Included | Yes |
| Platform Supported | PC |
| Warranty | |
|---|---|
| Limited Warranty | 2 Year |
