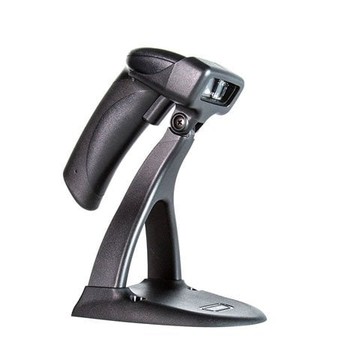

Code CR950 2D Area Imager Corded, Handheld, USB, DL Formatting, 6ft cable

The Code CR950 handheld barcode reader is a professional 1D/2D omnidirectional scanner designed for retail, POS, asset tracking and general identification workflows where reliable, high-throughput capture is required. Available in corded USB and RS-232 configurations, the CR950 uses a CMOS area imager to read printed and mobile-device-displayed barcodes and supports driver’s-license parsing and selectable continuous or motion-detection scan modes. Built for everyday commercial use, the product family offers clear LED and audible feedback, multiple mounting/stand options, and rugged characteristics including IP54 ingress protection and drop resistance to help minimize downtime and simplify deployment across counters, reception desks and light industrial environments.

Key Features

• Omnidirectional 1D/2D imaging: Area imager captures linear and matrix codes from multiple angles for fast, intuitive scanning and reduced operator training.
• Corded connectivity options: Available with USB and RS-232/serial interfaces for straightforward integration with POS, inventory and host systems.
• Mobile screen & ID support: Reads barcodes displayed on mobile device screens and offers driver’s-license parsing for expanded front‑end and verification use cases.
• Flexible operation modes: Selectable continuous scan, motion-detection or manual triggering to suit handheld or hands-free workflows in busy environments.
• Durable, commerce-ready design: IP54-rated housing and 6 ft drop resistance protect performance in retail and light industrial settings.
• Immediate user feedback: Beeper and LED indicators provide clear confirmation of successful reads to speed transactions and reduce errors.

Specifications

• Brand: Code
• Product Family / Name: Code CR950
• Product Type: Handheld barcode scanner
• Scanner Capability: 1D, 2D
• Scanner Type / Imager: 2D area imager (CMOS)
• Sensor Resolution: 1280 x 960
• Connectivity: Corded (Wired)
• Interfaces / Ports: USB, RS-232 / Serial
• Scan Pattern / Range: Area scan, Standard range
• Supported Applications: Retail, POS, asset tracking, general identification, driver license parsing
• Color / Finish: Dark Gray / Black
• Dimensions (H x W x D): 5.5 in x 2 in x 2.8 in
• Weight: Example variants: 3.88 oz (0.24 lbs) and kit options up to 1.5 lbs (depends on configuration)
• Ingress Protection Rating: IP54
• Drop Specification: 6 ft to concrete
• Operating Temperature: -4 °F to 122 °F
• Operating Humidity: 5 - 95% (non-condensing)
• Memory: 16 MB RAM, 1 MB flash (selected configurations)
• User Feedback: Beeper, LED indicator
• Accessories (varies by kit): Stands (US9, US3), included cables (USB 6 ft, RS-232 coiled 8 ft), power supply options in select kits
• Stand Included: Yes (varies by configuration)
• Compliance: IEC 60529 IP54; ISO 9001:2015, ISO 14001:2015
