Cambium Networks PTP 820 is a cutting-edge point-to-point licensed microwave backhaul platform that seamlessly integrates advanced networking capabilities with state-of-the-art microwave technologies. Supporting licensed frequency bands from 6 to 42 GHz, the PTP 820 series caters to various deployment scenarios, be it all-indoor, split-mount, or all-outdoor configurations. With features like unique Line of Sight (LOS) MIMO technology and dual-core functionality for up to 2 Gbps, this system ensures exceptional throughput and spectral efficiency, placing it at the forefront of high-performance wireless transport solutions.

Key Features:

**Licensed frequency bands:** 6-42 GHz
**Modulation:** Up to 2048 QAM with Adaptive Coding & Modulation (ACM)
**Capacity:** Multi-gigabit radio capacity with high spectral efficiency
**Configuration Options:** All-indoor, split-mount, and all-outdoor
**Synchronization Protocols:** Synchronous Ethernet (SyncE) and IEEE 1588v2
**Management Tools:** Comprehensive Operations, Administration, and Maintenance (OA&M) capabilities
**Power Consumption:** Low power consumption with adaptive green mode

Specifications:

Supported Frequency: 6-42 GHz
Role in the Network: Transport Technology: All packet
Modulation: QPSK to 2048 QAM with ACM
Channel Size: 28, 56, 30, 40, 50, 60, 80 MHz
Capacity (Layer 2): 605 Mbps to 1.66 Gbps (varies with configuration)
Ethernet Interface: Yes, 4x4 or 2x2 (varies by model)
Dimensions: 230 x 233 x 98 mm
Temperature Range: -33C to +55C (extended options available)
Power Input: -48 VDC
Maximum Power Consumption: From 32 W to 77 W depending on model

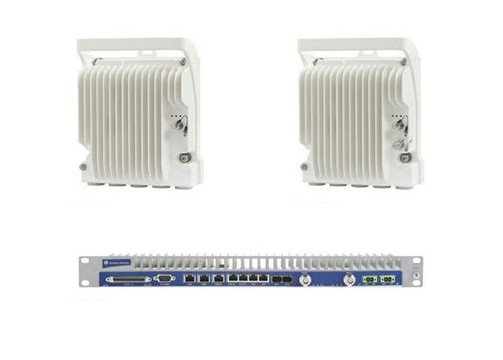

Cambium Networks C070082R089A Wireless Access Points

C070082R089A
