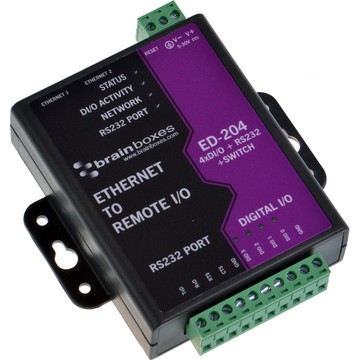

Brainboxes ED-204 Wireless & Networking

• Ethernet to 4 Digital IO and RS232 Serial Port with Ethernet Switch
• Installation CD Including Manual, Microsoft Signed Drivers & Utilities
• Quick Start Guide

IO Channels

• IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
• Description 4 Digital Inputs/Outputs
• Digital Inputs 4
• Digital Outputs 4
• Analog Inputs 0
• Analog Outputs 0
• Watchdog When device comms is lost, outputs can be set to predetermined state
• Power On Values Outputs can be set to predetermined values on power on
• Safe Values When Input triggered, outputs can be automatically set to predetermined value

Digital IO

• Input Logic Level 0 -30.0V to +1.0V
• Input Logic Level 1 +2.0V to +30V
• Input Latches Triggered by user programmable positive or negative edges, stays true until acknowledged
• Input Counter User progammable- counts positive or negative transitions up to 200Hz
• Digital Output Type Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min
• Maximum Output Load Voltage 30 VDC
• Maximum Output Current Sink 0.85A per channel

Serial Port

• Serial Gateway True serial port: RS232/422/485
• Protocol RS232

Network

• Number of Ports 2: 1 Uplink and 1 LAN, individually configurable
• Network Port Type RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX)
• Network Protocols ICMP, IP, TCP, DHCP, HTTP
• Protection 1500V Magnetic Isolation between ports and network

Power

• Power Input 5V - 30V DC input, reverse polarity protected
• Power Supply 1 Description Global Power Supply - PW-600
• Power Supply 2 Description Power supply PW-650
• Max Input 35 Volts

General

• Operating Temperature Range 0 °C to +60 °C / 32 °F to +140 °F
• Industrial Standard No
• Storage Temperature 0 °C to +70 °C / +32 °F to +158 °F
• Galvanic Isolation No

Operating Systems

• Microsoft Windows 10
• Suitable for any device with a Web Browser
• Microsoft Windows 8 32 bit & 64 bit Editions
• Windows Server 2012
• Raspberry Pi
• Android
• Windows Server 2008 R2
• Microsoft Windows 7 32 bit & 64 bit Editions
• iOS
• Windows Server 2008 32 bit & 64 bit Editions
• Windows Vista 32 bit & 64 bit Editions
• Mac OS X
• Windows XP 32 bit & 64 bit Editions
• Microsoft Windows 2000
• Linux

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
