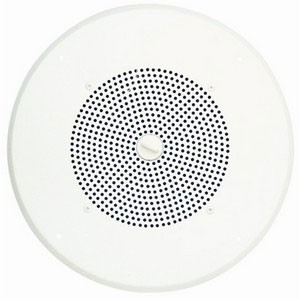

Bogen ASUG1 Computer Speakers

Bogen Model AS1 is the perfect solution for high-quality public address systems. This 8" cone-type loudspeaker integrates a self-contained 1-watt amplifier and a user-friendly volume control, allowing for seamless adjustments at each installation point. Available in multiple configurations—unmounted, in a wall baffle, or with a sleek ceiling grille—the AS1 adapts to various environments. With its robust design and impressive frequency response of 100 Hz to 10 kHz, it's designed to ensure you won’t miss a word of your announcement.

• 8" Cone speaker for rich sound quality
• Self-contained 1-watt amplifier for clear audio performance
• Built-in volume control for personalized sound adjustment
• Available with detachable knob (ASWG1DK) for easy access
• Multiple mounting options: wall baffle, ceiling grille, or unmounted
• Two-Year Warranty for peace of mind

• Maximum Output: 1W
• Frequency Response: 100 Hz to 10 kHz
• Input Impedance: 2000 ohms
• Typical Input Sensitivity: 125 mV
• Maximum Sound Pressure Level: 92 dB @ four feet on axis
• Dimensions:
  • ASWB1: 9-1/2" W x 9-1/2" H x 5-1/4" D
  • ASWG1/ASWG1DK: 12-7/8" diameter
• Dispersion: 90°
• Supply Voltage Range: 24V DC
• Weight:
  • AS1: 2 lb.
  • ASWB1: 8 lb.
  • ASWG1/ASWG1DK: 5 lb.
