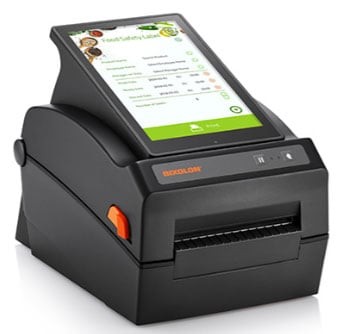

Label Printer Bixolon XQ-840CG
XQ-840CG
Select model
Key Features
- Fast Processing: Print speeds of up to 6 inches per second.
- High Resolution: 203 dpi print resolution ensures clarity.
- Ergonomic Design: Water and dust resistant with an 8-inch multi-touch screen.
- Diverse Connectivity: USB, Ethernet, WLAN, and Bluetooth interfaces.
- Easy Maintenance: Field installable peeler and auto cutter available.
Specifications
- Printer Specifications:
- Print Method: Direct Thermal
- Print Speed: Up to 6 ips (152 mm/sec)
- Print Resolution: 203 dpi
- Print Width: Up to 108 mm
- Media Characteristics:
- Media Type: Gap, Black Mark, Notch, Continuous, Fan-Fold
- Media Width: 15 - 118 mm
- Media Roll Diameter: Up to 130 mm
- Physical Characteristics:
- Dimensions: 194 x 273 x 212 mm
- Weight: 2.2 kg (4.85 lbs.)
- Electrical:
- EnergyStar Certified
- Power Supply: 100-240V AC, 50/60 Hz
- Interface:
- 2 USB Host ports + Ethernet + WLAN + Bluetooth
Main Features
-
Equipment Format: Desktop
-
Connection: Bluetooth
-
Printing Technology: Direct Thermal
| Technical Information | |
|---|---|
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 6 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 39.37" |
| Maximum Print Width | 4.25" |
| Barcode Symbology Supported |
|
| Real Time Clock | Yes |
| Application/Usage | Desktop |
| Features |
|
| Connectivity Technology | Wireless |
| Optional Connectivity |
|
| Fonts Included |
|
| Print Technology | Direct Thermal |
| Memory | |
|---|---|
| Standard Memory | 64 MB |
| Network & Communication | |
|---|---|
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Cutter | |
|---|---|
| Cutter | Yes |
| Cutting Method | Automatic |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Media Sensor |
|
| Media Thickness | 7.87 mil |
| Maximum Roll Diameter | 5.12" |
| Maximum Label Width | 4.65" |
| Fonts & Emulation | |
|---|---|
| Language Emulation |
|
| Power Description | |
|---|---|
| Power Source | AC Supply |
| Environmental Conditions | |
|---|---|
| Operating Temperature | 32°F (0°C) - 104°F (40°C) |
| Operating Relative Humidity | 10% - 80% |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Storage Relative Humidity | 10% - 90% |
| Physical Characteristics | |
|---|---|
| Height | 8.3" |
| Width | 7.6" |
| Depth | 10.7" |
| Weight (Approximate) | 4.85 lb |
| Miscellaneous | |
|---|---|
| Platform Supported | Android |
| Energy Star | Yes |
xq-840.pdf XQ-840CG
xq-840.pdf MOD-XQ-840
