Bixolon

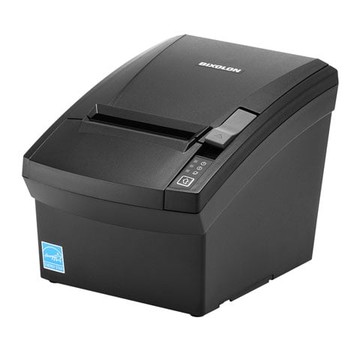

BIXOLON, 3-INCH THERMAL POS PRINTER, BLACK COLOR, BUILT IN PARALLEL AND USB, AUTO CUTTER, 180 DPI, PACKAGE: POWER SUPPLY US POWER CORD, MANUAL, QUICK REFERENCE GUIDE, USB CABLE

SKU:

SRP-330IIIPK

Barcode Label Printer, Bixolon SRP-330III, Bixolon, 3-Inch Thermal POS Printer, Black Color, Built In Parallel And USB, Auto Cutter, 180 Dpi, Package: Power Supply Us Power Cord, Manual, Quick Reference Guide, USB Cable
Description
ico-plus ico-minus
The Bixolon SRP-330III Barcode Label Printer is engineered for efficiency, making it the ideal choice for restaurants, retail shops, and bars. With its compact design and high-speed thermal printing (up to 250 mm/sec), it ensures quick, high-quality receipts every time. The printer supports a variety of media widths and features a user-friendly interface, allowing for easy operation and maintenance. Energy Star certified, the SRP-330III offers a responsible solution without compromising on performance.
Key features:
  • Fast Printing Speed: Up to 250 mm/sec for quick transaction processing.
  • User-Friendly Design: Automatic media width switch and paper-saving mode.
  • Multiple Interface Choices: Triple and dual interface options available.
  • Reliable Performance: 180 or 203 dpi print resolution options to fit your needs.
  • Compact Size: Dimensions of 145 x 195 x 146 mm, weighing only 1.6 kg.

Specifications:
  • Print Method: Direct Thermal
  • Print Speed: Up to 250 mm/sec
  • Print Resolution: 180 dpi or 203 dpi
  • Print Width: Up to 72 mm (options for 58 mm)
  • Media Characteristics:
    • Media Type: Receipt
    • Media Roll Diameter: Up to 80 mm
    • Media Thickness: 0.05 - 0.08 mm
  • Dimensions: 145 x 195 x 146 mm (W x D x H)
  • Weight: 1.6 kg
  • Operating Temperature: 0~40 °C (32 ~ 104 °F)
  • Power Supply: External Power Adaptor 100-240V AC
  • Memory: 128 Mb SDRAM, 64 Mb Flash

Main Features

  • POS: Yes

  • Equipment Format: Desktop

  • Case color: Black

  • Connection: Serial, USB

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 8.66 in/s
Maximum Print Resolution (dpi) 180
Maximum Print Width 2.83"
Barcode Symbology Supported
  • Codabar
  • Code 39
  • QR Code
  • PDF417
  • Data Matrix
  • UPC-E
  • UPC-A
  • ITF
  • EAN-13
  • EAN-8
  • Code 128
  • Code 93
Application/Usage
  • Banking
  • Ticketing
  • Hospitality
  • Retail
  • Kiosk
Character Sets
  • 95 Alphanumeric
  • 32 International
  • 128 x 33 Graphic
Fonts Included
  • JPN: 21
  • Font A: 42
  • CHN
  • KOR
Print Technology Direct Thermal
Memory
Standard Memory 64 MB
Flash Memory 32 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Display & Graphics
Display Screen Yes
Screen Size 3"
Display Screen Type LCD
Cutter
Cutter Yes
Cutting Method Automatic
Cutter Life 1500000 Cuts
Media Types & Handling
Media Type Receipt
Media Sensor
  • Paper End Sensor
  • Cover Open Sensor
Media Thickness 2.76 mil
Maximum Roll Diameter 3.15"
Maximum Label Width 3.15"
Fonts & Emulation
Language Emulation BXL/POS
Power Description
Power Source Power Adapter
Frequency
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature 32°F (0°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
Storage Temperature 4°F (-15.6°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Color Family Black
Product Color Black
Height 7.8"
Width 5.7"
Depth 5.7"
Weight (Approximate) 3.02 lb
Miscellaneous
Platform Supported
  • PC
  • Handheld
Energy Star Yes
Documents
ico-plus ico-minus
Product document SRP-330III.pdf SRP-330IIIPK Product document mod-srp-330ii-bixolon-label-printer-datasheet.pdf SRP-330II Product document mod-srp-330ii-bixolon-label-printer-user-manual.pdf SRP-330II
