Aiphone

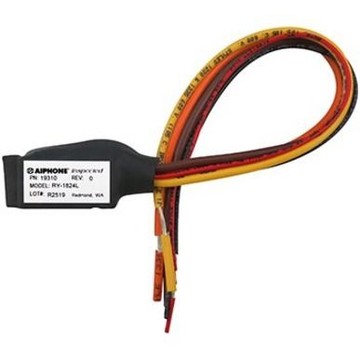

Aiphone RY-1824L Accessories

SKU:

RY-1824L

FORM C DOOR RELEASE RELAY, 18-24V DC INPUT
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Aiphone.
Technical Specifications
ico-plus ico-minus
Product Information
Application/Usage Door Control
Power Description
Minimum Operating Voltage 18 V DC
Maximum Operating Voltage 24 V DC
Physical Characteristics
Height 1.4"
Width 0.8"
Depth 0.4"
Miscellaneous
Additional Information
  • Relay Input: 18-24V DC, red and black wires, 22AWG
  • Relay Output: Brown, yellow, orange wires, 18AWG
  • Output Rating: 8A at 250V AC, 5A at 30V DC
  • Wiring: 2-conductor from station's door release contacts to RY-1824L 2-conductor from RY-1824L to release mechanism, with power wired in series
  • Country of origin: United States. Country of origin is subject to change
Compatibility

Aiphone Masters and Sub Stations:

  • JP-4MED
  • KB-3MRD
  • JF-2MED
  • JO-1MD
  • JO-1F

Aiphone Central Control Units:

  • AX-084C
  • AX-248C
  • AX-320C
Country of Origin United States
