Elo

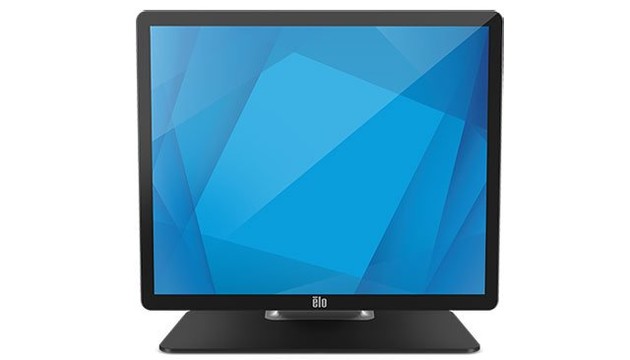

Elo 1903LM, 48.3 cm (19''), Projected Capacitive, 10 TP, black

SKU:

E658394

IP54-rated sealing is the defining specification of the Elo E658394, a 19-inch medical-grade LCD touchscreen monitor built for healthcare environments where sanitization and fluid resistance are non-negotiable. Its TouchPro Projected Capacitive panel supports 10 simultaneous touch points and is operable with wet or dry gloves, resolving at 1280 x 1024 in SXGA mode with 225 Nit brightness, a 1,000:1 native contrast ratio, and a 14 ms response time across 178-degree horizontal and vertical viewing angles. The LED-backlit display renders 16.7 million colors at a 60 Hz standard refresh rate and ships pre-calibrated per DICOM Part 14 GSDF guidelines, with an IEC 60601-compliant power supply included. Connectivity spans HDMI and USB, with 4 USB ports served through a built-in USB hub, and a 100 x 100 VESA mount pattern supports arms, walls, and medical carts. Operating power draw is 16.36 W, and the unit weighs 9.48 lb without its stand. RoHS, WEEE, and REACH compliance are confirmed, and the monitor carries a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 1515L is a 15-inch LCD touchscreen monitor designed for system integrators, value-added resellers, and point-of-sale deployments in retail, hospitality, and light industrial environments. Built from the ground up as a purpose-made touch solution, it features 5-wire resistive multi-touch technology that accepts input from a finger, stylus, or gloved hand, making it well suited for demanding public-facing use. The 4:3 display delivers XGA resolution up to 1024 x 768 at 250 Nit brightness and a 700:1 contrast ratio with 16.7 million colors, while LED backlighting keeps power consumption to just 13 W. Its compact footprint, VESA mount compatibility, side-mounted lockable controls, and factory-sealed housing make it equally practical as a desktop or wall-mounted unit. A 3-year limited warranty rounds out a cost-effective, durable package.

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 19"
Viewable Screen Size 19"
Screen Mode SXGA
Response Time 14 ms
Aspect Ratio 5:4
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Mount Type Desk Mountable
Backlight Technology LED
Features
  • Anti-glare
  • On-screen Display (OSD)
Horizontal Frequency 30 kHz to 82 kHz
Vertical Frequency 50 Hz to 75 Hz
Video
Maximum Resolution 1280 x 1024
Standard Refresh Rate 60 Hz
Color Supported 16.7 Million Colors
Native Contrast Ratio 1,000:1
Brightness 225 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Type Projected Capacitive
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Interfaces/Ports
HDMI Yes
USB Yes
Number of USB Ports 4
Built-in Devices
Built-in Devices USB Hub
Power Description
Operating Power Consumption 16.36 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Product Color Black
Height with Stand 15.66"
Width with Stand 16.91"
Depth with Stand 7.61"
Weight (Approximate) 9.48 lb
Weight with Stand (Approximate) 13.90 lb
Miscellaneous
Package Contents
  • 1903LM 19" Medical Grade Touchscreen Monitor
  • Quick Install Guide
  • 3 x Tie wraps
  • VGA cable
  • HDMI cable
  • Touch USB cable
  • Audio cable
  • Power brick
  • NA Power cable
  • EU Power cable
  • EEI Label
  • DICOM calibration sheet
Environmental Certification
  • RoHS
  • China RoHS
  • WEEE
  • REACH
Country of Origin China
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 1903lm-2021.pdf E658394 Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1215l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1509l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1515l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1715l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-datasheet-elo-touch-1915l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-manual-elo-touch-1215l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-manual-elo-touch-1509l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS Product document mod-touch-solutions-entry-level-lcds-elo-monitor-manual-elo-touch-1515l-1715l-1915l.pdf MOD-TOUCH-SOLUTIONS-ENTRY-LEVEL-LCDS
FAQs
ico-plus ico-minus
What touch technologies are available in the Elo Touchscreen Monitor Series?
The series offers AccuTouch five-wire resistive and IntelliTouch surface acoustic wave technologies, designed for stable and drift-free operation across retail, hospitality, and light industrial environments.
What connectivity interfaces do the Elo Touchscreen Monitor Series displays support?
These monitors support USB and serial touch interfaces, along with VGA and HDMI video inputs.
What screen sizes and aspect ratios does the Elo Touchscreen Monitor Series cover?
The series spans integrated touchscreen sizes from 30.5 cm to 48.3 cm (12 to 19 inches) and offers both 4:3 and 16:9 aspect ratio options, including a widescreen model.
What is the maximum display resolution available in the Elo Touchscreen Monitor Series?
The maximum resolution supported is 1280 x 1024 pixels, with up to 16.2 million viewable colors.
What warranty does the Elo Touchscreen Monitor Series carry, and how long is the product lifecycle?
The series carries a standard 3-year warranty and is designed for a long product life cycle with worldwide agency approvals.
