Elo

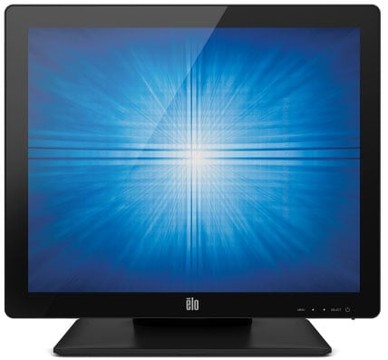

Elo Touch Monitor 1717L, 17'', AccuTouch, Antiglare, black

SKU:

E649473

1717 17-inch LCD (LED Backlight) Desktop, WorldWide, AccuTouch Single-touch, USB & RS232 Controller, Anti-glare, Zero-bezel, VGA video interface, Black
Description
ico-plus ico-minus

The Elo 1717L Touchscreen Monitor is a robust, commercial-grade solution designed for high-usage environments such as retail and hospitality. With a sleek, thin design, this 17-inch LED touch display combines cutting-edge technology with features tailored for continuous public use. It stands out with its **edge-to-edge zero-bezel** design, providing exceptional optical quality, while its energy-efficient LED backlighting ensures 40% energy savings. Equipped with versatile mounting options and a range of touch technologies, the 1717L is perfect for point-of-sale and interactive digital signage applications.


Key features:
  • Edge-to-edge Zero-bezel: AccuTouch resistive and iTouch surface acoustic wave
  • Traditional Bezel: AccuTouch resistive and IntelliTouch surface acoustic wave
  • Antiglare or Clear glass options available
  • Sleek and thin design with "Built for Touch" Reliability
  • 40% Energy Savings using LED Technology
  • 3 Year Standard Warranty
  • Integrated cable management
  • Space-saving design: Desktop, wall, or VESA mounting

Specifications:
  • Model: 1717L
  • Color: Black or White
  • Active Display Area: 13.3 x 10.6 inches / 338 x 270 mm
  • Monitor Dimensions (with stand): 15.4 x 8.5 x 14.2 inches / 392 x 215 x 361 mm
  • Thickness: 1.7 inches / 43 mm
  • LCD Technology: Active matrix TFT LCD with LED backlighting
  • Diagonal Size: 17.0"
  • Aspect Ratio: 5:4
  • Native Resolution: 1280 x 1024
  • Supported Resolutions: Various, including 640 x 480, 800 x 600, 1024 x 768
  • Brightness (typical): LCD Panel: 250 nits; with AccuTouch 200 nits
  • Weight: Unpackaged: 5.4 kg / 11.9 lb.; Packaged: 8.3 kg / 18.3 lb.
  • Power Consumption: Typical: 20W; Sleep: 1.8W; Off: 1.4W
  • Touch Interface: Serial (RS232) and USB
  • Warranty: 3 years standard

Main Features

  • Touch: Yes

  • Connection: USB, Serial

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 17"
Viewable Screen Size 17"
Screen Mode SXGA
Screen Surface Anti-glare
Response Time 7.80 ms
Aspect Ratio 5:4
Horizontal Viewing Angle 170°
Vertical Viewing Angle 160°
Mount Type
  • Desk Mountable
  • Pole Mount
  • Wall Mountable
Backlight Technology LED
Features Security Lock
Video
Maximum Resolution 1280 x 1024
Standard Refresh Rate 75 Hz
Color Supported 16.7 Million Colors
Contrast Ratio 800:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Yes
Touchscreen Type 5-wire Resistive
Interfaces/Ports
USB Yes
VGA Yes
Serial Port Yes
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Operating Power Consumption 20 W
Standby Power Consumption 1.80 W
Off-Mode Power Consumption 1.40 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height 15.4"
Height with Stand 15.43"
Width with Stand 14.21"
Depth with Stand 8.46"
Weight (Approximate) 11.90 lb
Weight with Stand (Approximate) 11.90 lb
Miscellaneous
Package Contents
  • 1717L Rev B 17-inch Multifunction Desktop
  • Power Cable
  • Detachable Touch and Video Cables
Platform Supported PC
Environmentally Friendly Yes
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 1717l-2021.pdf E649473 Product document 1517l.pdf MOD-1517L-1717L Product document 1717l.pdf MOD-1517L-1717L
