Elo

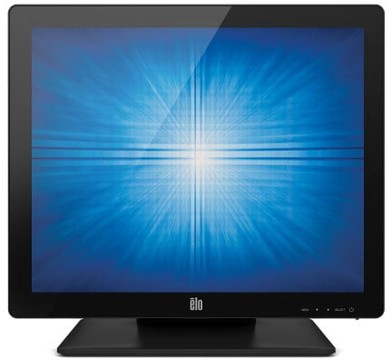

Elo 1517L rev. B, 38.1 cm (15''), iTouch, black

SKU:

E829550

Fitted with Surface Acoustic Wave single-touch technology, the Elo E829550 delivers a 15-inch viewable display at 1024 x 768 resolution with a 4:3 aspect ratio, 700:1 contrast ratio, and 250 Nit brightness across 16.2 million colors. The LED backlight draws just 12 W during operation, dropping to 1.70 W in standby and 1.30 W in off mode, with universal input support across 110 V AC, 220 V AC, and 12 V DC. A 16 ms response time and 160-degree horizontal and 140-degree vertical viewing angles suit high-traffic counter and point-of-sale environments. VGA, USB, and serial interfaces are included, and the 75 x 75 VESA mount pattern supports desk, wall, and pole installation. At 9.48 lb with stand dimensions of 14.10 in wide by 12.50 in tall by 7.80 in deep, the unit carries certifications including UL, cUL, CE, FCC, CB, and IMERC, and is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo Touch Solutions 1717L is a 17-inch commercial-grade LCD touchscreen monitor designed for procurement and IT buyers deploying point-of-sale, point-of-information, interactive digital signage, and loyalty systems in high-traffic retail and hospitality environments. Built on an active matrix TFT LCD panel with LED backlighting, it delivers a native resolution of 1280 x 1024 at SXGA, a 800:1 contrast ratio, 250 Nit brightness, and wide viewing angles of 170° horizontal and 160° vertical, ensuring clear visibility across the counter. Surface Acoustic Wave touch technology provides precise, durable touch response, while Serial (RS232) and USB touch interfaces support straightforward integration with existing POS infrastructure. Flexible VESA 75 x 75 mounting and a 5 ms response time round out a monitor engineered for continuous public use, backed by a 3-year standard warranty.

Main Features

  • Touch: Yes

  • Connection: USB, Serial

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 15"
Viewable Screen Size 15"
Screen Mode XGA-2
Response Time 16 ms
Aspect Ratio 4:3
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Adjustable Display Angle Yes
Mount Type
  • Desk Mountable
  • Wall Mountable
  • Pole Mount
Backlight Technology LED
Features Security Lock
Horizontal Frequency 60 kHz
Video
Maximum Resolution 1024 x 768
Standard Refresh Rate 75 Hz
Color Supported 16.2 Million Colors
Contrast Ratio 700:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Yes
Touchscreen Type Surface Acoustic Wave
Interfaces/Ports
USB Yes
VGA Yes
Serial Port Yes
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
  • 12 V DC
Operating Power Consumption 12 W
Standby Power Consumption 1.70 W
Off-Mode Power Consumption 1.30 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height with Stand 12.50"
Width with Stand 14.10"
Depth with Stand 7.80"
Weight (Approximate) 9.48 lb
Miscellaneous
Package Contents
  • 1517L Rev B 15-inch Multifunction Desktop
  • Detachable Touch and Video Cables
  • Power Cable
Certifications & Standards
  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • e-Standby
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC
  • IEC 60320 C6
Platform Supported PC
Country of Origin China
Environmentally Friendly Yes
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 1517l-2021.pdf E829550  (PDF)
FAQs
ico-plus ico-minus
What touch technologies are available on the Elo Touch 1517L and 1717L touchscreen monitors?
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology, while the 1717L is also offered with AccuTouch, IntelliTouch, and iTouch technologies. Both models are available in traditional bezel or edge-to-edge zero-bezel configurations depending on the touch technology chosen.
What are the native resolutions of the Elo Touch 1517L and 1717L monitors?
The 1517L has a native resolution of 1024 x 768 on its 15.0-inch, 4:3 panel, while the 1717L has a native resolution of 1280 x 1024 on its 17.0-inch, 5:4 panel.
How do the Elo Touch 1517L and 1717L connect to a host system for touch input?
Both monitors support Serial (RS232) and USB touch interfaces, giving integrators the flexibility to connect via whichever port their POS or kiosk host system provides.
What mounting options are supported by the Elo Touch 1517L and 1717L monitors?
Both models support desktop use with the included stand, wall mounting, and VESA mounting via a four-hole 75 mm mounting interface on the rear of the unit. The stand base also includes a threaded three-hole mounting pattern for securing the monitor to a flat surface.
What is the standard warranty on the Elo Touch 1517L and 1717L monitors, and is an extended warranty available?
Both monitors include a 3-year standard warranty. For the 1517L, extended warranty options are available from Elo covering 4-year and 5-year terms, as well as options that include Advance Unit Replacement (AUR) coverage.
Can the Elo Touch 1517L or 1717L be fitted with a magnetic stripe reader for POS use?
Yes, both models support an optional field-installable 3-track magnetic stripe reader (MSR) that integrates directly into the monitor, eliminating the need for external brackets. The MSR is programmable to either HID or Keyboard Emulation mode.
