Datalogic

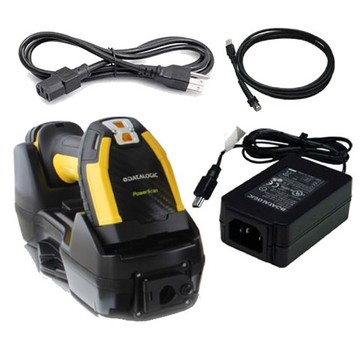

Datalogic PowerScan PBT9600 Barcode Scanner Standard Range, Bluetooth, USB, Cordless, 2D Area Imager, Rugged

SKU:

PBT9600-SRRBK12US

Wireless charging via inductive technology sets the Datalogic PBT9600-SRRBK12US apart within the PowerScan 9600 family, eliminating the contact pins that accumulate wear in industrial environments. This cordless Standard Range 2D area imager pairs over Bluetooth 5.0 to any compatible host or to the BC9600 base station, with USB and serial interfaces also supported through the included BC9600 cradle. The 1280 x 800 image sensor reads 1D and 2D codes omnidirectionally across a scanning distance of 68.90 in, with a 38-degree horizontal and 24-degree vertical field of view, 52-degree skew and pitch tolerance, and full 360-degree roll. A 15% minimum print contrast and 10 mil minimum element resolution for DataMatrix codes define decode sensitivity, while white LED illumination and 100000 lux ambient light tolerance support operation in bright industrial settings. The 3350 mAh Li-Ion battery recharges in 3.20 hours, and IP65/IP67 sealing with an operating range of -4 F (-20 C) to 122 F (50 C) covers warehouse, manufacturing, logistics and assembly line deployment. The scanner weighs 14.64 oz.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Durablite 9600 is a rugged handheld data-capture solution designed for industrial, warehousing, logistics and field-service environments that require reliable hybrid reading. Combining UHF RFID read/write capability with a high-performance 2D imager, OCR/document capture and image acquisition, this cordless scanner enables inventory, asset tracking and verification workflows with a single device. Its removable 3350 mAh Li‑Ion battery with wireless charging options, bright OLED display, configurable keypads and broad connectivity (Bluetooth 5.0, USB, RS‑232, industrial Ethernet and more) deliver extended uptime, flexible integration and robust operation under IP65/IP67 protection and elevated drop resistance for demanding workflows.

Key Features

  • Hybrid data capture: Integrated UHF RFID reading/writing plus fast 2D imaging and OCR/document capture for consolidated tag and barcode workflows.
  • Rugged design: IP65/IP67 ingress protection and enhanced drop resistance for dependable operation in harsh industrial and logistics environments.
  • Extended runtime & serviceability: Removable 3350 mAh Li‑Ion battery with wireless charging support to minimize downtime and enable quick field swaps.
  • Broad connectivity: Bluetooth 5.0 wireless plus multi‑interface support (USB, RS‑232, USB‑C, Ethernet/Industrial Ethernet, Profinet) for flexible system integration.
  • Operator usability: High‑visibility OLED display and configurable key options (4‑key or 16‑key) with vibration/3GL feedback for clear on‑device interaction and confirmations.

Specifications

  • Brand: Datalogic
  • Product name: Durablite 9600
  • Category: Handheld Barcode Scanners
  • Color: Black, Blue
  • Weight: 415 g / 455 g
  • Dimensions: 19.8 x 15.0 x 7.9 cm
  • Form Factor: Handheld (rugged)
  • Reading mode / Scan technology: 2D imager (including high density and dual‑sensor options)
  • Supported codes: 1D, 2D, stacked codes, postal codes, Direct Part Marking (DPM)
  • OCR / Document Capture: true
  • Display: 1.8 in high‑visibility OLED (graphic)
  • Keypad / Function keys: Options: 4‑keys or 16 configurable keys
  • Battery: Li‑Ion, 3350 mAh (removable)
  • Scans per Charge (approx.): 80000 scans
  • Wireless charging: true
  • Connectivity / Interfaces: Bluetooth 5.0, USB, USB‑C, RS‑232, Ethernet, industrial Ethernet / protocols (Ethernet/IP, Profinet)
  • Bluetooth range: 100 m
  • RFID UHF frequency: 865–868 MHz
  • Ingress Protection: IP65, IP67
  • Drop Resistance: up to 2.5 m
  • Motion sensing: Motionix
  • Good‑read feedback: 3 Green Lights (3GL) and loud beeper
  • Trigger durability: 10,000,000 cycles

Main Features

  • Rugged: Industrial

  • Case color: Black

  • IP Rating: IP67

  • Range: Standard Range

  • Connectivity: Cordless

  • Connection: USB, Serial, RS232, Ethernet, Bluetooth

  • Scanner Capability: 2D, 1D

  • Included Battery: Yes

  • Battery Features: Wireless Charging

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Image Sensor Type Imager
Scan Pattern
  • Omni-directional
  • Area
Scanner Range Standard Range
Scanning Distance 68.90"
Features
  • Vibration
  • Beep
  • 3GL
  • Notification LED
  • Ergonomic Design
Cable Type Included USB
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Interfaces/Ports
Host Interface
  • USB
  • Serial
Power Description
Power Supply Included Yes
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 3.20 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color
  • Black
  • Yellow
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 14.64 oz
Miscellaneous
Ingress Protection (IP) Rating
  • IP67
  • IP65
Application/Usage
  • Manufacturing
  • Warehouse
  • Logistics
  • Component Tracking
  • Inventory
  • Sorting
  • Assembly Line
  • Picking
  • Industrial
Documents
ico-plus ico-minus
Product document powerscan9600.pdf PBT9600-SRRBK12US  (PDF)
