Datalogic

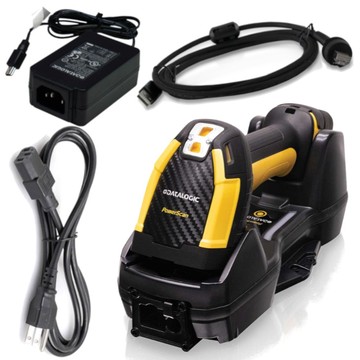

Datalogic PowerScan PBT9600 Handheld Industrial Scanner Bluetooth, Standard Range, Removable Battery, USB Kit, Rugged

SKU:

PBT9600-SRRBK10US

Wireless charging via inductive-charging technology sets the PBT9600-SRRBK10US apart within the PowerScan 9600 line, eliminating the battery contacts and pins that degrade over time in demanding environments. This Bluetooth 5.0 cordless handheld area imager pairs the Standard Range optic with a 1280 x 800 image sensor and omni-directional scanning across a 38-degree horizontal by 24-degree vertical field of view, reaching a maximum scanning distance of 68.90 in and tolerating ambient light up to 100,000 lux. Reading angles extend to 52 degrees skew, 52 degrees pitch, and 360 degrees roll, with a minimum element resolution of 10 mil for DataMatrix and a minimum print contrast of 15%. The 3,350 mAh Li-Ion battery recharges in 3.20 hours, and the BC9600 base station supports RS-232, USB, Ethernet, and Bluetooth interfaces. Drop resistance is rated at 50 drops from 2.5 m at 20 degrees C and 50 drops from 2.0 m at -20 degrees C, complemented by IP67 and IP65 sealing and an operating temperature range of -4 degrees F (-20 degrees C) to 122 degrees F (50 degrees C). Good-read feedback combines beep, vibration, notification LED, and 3GL confirmation, covering manufacturing, warehouse, logistics, picking, and assembly-line deployments.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Durablite 9600 is a rugged handheld data-capture solution designed for industrial, warehousing, logistics and field-service environments that require reliable hybrid reading. Combining UHF RFID read/write capability with a high-performance 2D imager, OCR/document capture and image acquisition, this cordless scanner enables inventory, asset tracking and verification workflows with a single device. Its removable 3350 mAh Li‑Ion battery with wireless charging options, bright OLED display, configurable keypads and broad connectivity (Bluetooth 5.0, USB, RS‑232, industrial Ethernet and more) deliver extended uptime, flexible integration and robust operation under IP65/IP67 protection and elevated drop resistance for demanding workflows.

Key Features

  • Hybrid data capture: Integrated UHF RFID reading/writing plus fast 2D imaging and OCR/document capture for consolidated tag and barcode workflows.
  • Rugged design: IP65/IP67 ingress protection and enhanced drop resistance for dependable operation in harsh industrial and logistics environments.
  • Extended runtime & serviceability: Removable 3350 mAh Li‑Ion battery with wireless charging support to minimize downtime and enable quick field swaps.
  • Broad connectivity: Bluetooth 5.0 wireless plus multi‑interface support (USB, RS‑232, USB‑C, Ethernet/Industrial Ethernet, Profinet) for flexible system integration.
  • Operator usability: High‑visibility OLED display and configurable key options (4‑key or 16‑key) with vibration/3GL feedback for clear on‑device interaction and confirmations.

Specifications

  • Brand: Datalogic
  • Product name: Durablite 9600
  • Category: Handheld Barcode Scanners
  • Color: Black, Blue
  • Weight: 415 g / 455 g
  • Dimensions: 19.8 x 15.0 x 7.9 cm
  • Form Factor: Handheld (rugged)
  • Reading mode / Scan technology: 2D imager (including high density and dual‑sensor options)
  • Supported codes: 1D, 2D, stacked codes, postal codes, Direct Part Marking (DPM)
  • OCR / Document Capture: true
  • Display: 1.8 in high‑visibility OLED (graphic)
  • Keypad / Function keys: Options: 4‑keys or 16 configurable keys
  • Battery: Li‑Ion, 3350 mAh (removable)
  • Scans per Charge (approx.): 80000 scans
  • Wireless charging: true
  • Connectivity / Interfaces: Bluetooth 5.0, USB, USB‑C, RS‑232, Ethernet, industrial Ethernet / protocols (Ethernet/IP, Profinet)
  • Bluetooth range: 100 m
  • RFID UHF frequency: 865–868 MHz
  • Ingress Protection: IP65, IP67
  • Drop Resistance: up to 2.5 m
  • Motion sensing: Motionix
  • Good‑read feedback: 3 Green Lights (3GL) and loud beeper
  • Trigger durability: 10,000,000 cycles

Main Features

  • Rugged: Industrial

  • Case color: Black

  • IP Rating: IP67

  • Range: Standard Range

  • Connectivity: Cordless

  • Connection: RS232, Ethernet, Bluetooth, USB

  • Scanner Capability: 1D, 2D

  • Included Battery: Yes

  • Battery Features: Wireless Charging

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable/Wireless
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Omni-directional
Scanner Range Standard Range
Scanning Distance 68.90"
Features
  • Ergonomic Design
  • Beep
  • Vibration
  • Notification LED
  • 3GL
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Interfaces/Ports
Host Interface USB
Power Description
Power Supply Included Yes
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 3.20 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Durability
  • Water Resistant
  • Dust Resistant
  • Drop Resistant
Height 7.8"
Width 3.1"
Length 5.5"
Miscellaneous
Ingress Protection (IP) Rating
  • IP67
  • IP65
Application/Usage
  • Industrial
  • Manufacturing
  • Warehouse
  • Logistics
  • Inventory
  • Picking
  • Assembly Line
  • Component Tracking
  • Packing
  • Sorting
Documents
ico-plus ico-minus
Product document pm9600.pdf PBT9600-SRRBK10US  (PDF)
