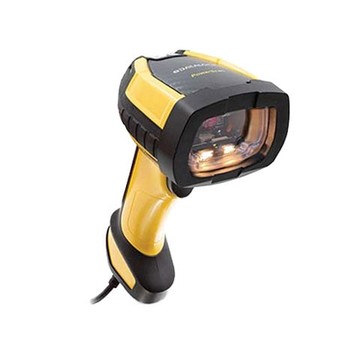

Datalogic PBT9600 Barcode Scanner 2D, Auto Range, Bluetooth 5.0, Multi-Interface, IP65/IP67, Industrial

SKU:

PBT9600-ARRBK10US

Fitted with a 3350 mAh Li-Ion battery that recharges in 2.50 hours, the Datalogic PBT9600-ARRBK10US ships as a complete kit including a charging/transmitter cradle, RS232 cable, and power supply unit. The Auto Range omni-directional 2D imager resolves Code 39 symbols from 3 mil to 20 mil and DataMatrix from 10 mil to 100 mil, with a 1280 x 800 image sensor, a 38-degree horizontal by 24-degree vertical field of view, and a 360-degree roll tolerance. Bluetooth 5.0 provides cordless operation, while Serial and USB host interfaces support integration into POS and warehouse systems. IP65 and IP67 ingress protection, combined with a drop rating of 50 drops from 2.5 m at 20 degrees C, covers demanding manufacturing, logistics, picking, and asset-tracking environments. Symbology support spans all standard 1D codes, GS1 DataBar, Aztec Code, Data Matrix, QR Code, PDF417, and postal formats including IMB and Postnet, with direct part marking decoding enabled. Operating temperature runs from -4 degrees F (-20 degrees C) to 122 degrees F (50 degrees C), and the 15.70 oz handheld weighs in at 7.8 in tall and 3.1 in wide.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Durablite 9600 is a rugged handheld data-capture solution designed for industrial, warehousing, logistics and field-service environments that require reliable hybrid reading. Combining UHF RFID read/write capability with a high-performance 2D imager, OCR/document capture and image acquisition, this cordless scanner enables inventory, asset tracking and verification workflows with a single device. Its removable 3350 mAh Li‑Ion battery with wireless charging options, bright OLED display, configurable keypads and broad connectivity (Bluetooth 5.0, USB, RS‑232, industrial Ethernet and more) deliver extended uptime, flexible integration and robust operation under IP65/IP67 protection and elevated drop resistance for demanding workflows.

Key Features

  • Hybrid data capture: Integrated UHF RFID reading/writing plus fast 2D imaging and OCR/document capture for consolidated tag and barcode workflows.
  • Rugged design: IP65/IP67 ingress protection and enhanced drop resistance for dependable operation in harsh industrial and logistics environments.
  • Extended runtime & serviceability: Removable 3350 mAh Li‑Ion battery with wireless charging support to minimize downtime and enable quick field swaps.
  • Broad connectivity: Bluetooth 5.0 wireless plus multi‑interface support (USB, RS‑232, USB‑C, Ethernet/Industrial Ethernet, Profinet) for flexible system integration.
  • Operator usability: High‑visibility OLED display and configurable key options (4‑key or 16‑key) with vibration/3GL feedback for clear on‑device interaction and confirmations.

Specifications

  • Brand: Datalogic
  • Product name: Durablite 9600
  • Category: Handheld Barcode Scanners
  • Color: Black, Blue
  • Weight: 415 g / 455 g
  • Dimensions: 19.8 x 15.0 x 7.9 cm
  • Form Factor: Handheld (rugged)
  • Reading mode / Scan technology: 2D imager (including high density and dual‑sensor options)
  • Supported codes: 1D, 2D, stacked codes, postal codes, Direct Part Marking (DPM)
  • OCR / Document Capture: true
  • Display: 1.8 in high‑visibility OLED (graphic)
  • Keypad / Function keys: Options: 4‑keys or 16 configurable keys
  • Battery: Li‑Ion, 3350 mAh (removable)
  • Scans per Charge (approx.): 80000 scans
  • Wireless charging: true
  • Connectivity / Interfaces: Bluetooth 5.0, USB, USB‑C, RS‑232, Ethernet, industrial Ethernet / protocols (Ethernet/IP, Profinet)
  • Bluetooth range: 100 m
  • RFID UHF frequency: 865–868 MHz
  • Ingress Protection: IP65, IP67
  • Drop Resistance: up to 2.5 m
  • Motion sensing: Motionix
  • Good‑read feedback: 3 Green Lights (3GL) and loud beeper
  • Trigger durability: 10,000,000 cycles

Main Features

  • Rugged: Industrial

  • POS: Yes

  • Battery Capacity: High Capacity

  • IP Rating: IP67

  • Range: Standard Range

  • Connectivity: Cordless

  • Connection: RS232, Serial, USB

  • Scanner Capability: Imager, 2D

  • Included Battery: Yes

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC model
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Omni-directional
Scanner Range Auto Range
Cable Type Included Serial
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Direct Part Marking (DPM) Decoding Yes
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color Red
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface
  • Serial
  • USB
Power Description
Power Supply Included Yes
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 2.50 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 15.70 oz
Miscellaneous
Ingress Protection (IP) Rating
  • IP65
  • IP67
Application/Usage
  • Manufacturing
  • Warehouse
  • Logistics
  • Picking
  • Inventory
  • Asset Tracking
Documents
ico-plus ico-minus
Product document pm9600.pdf PBT9600-ARRBK10US  (PDF)
