Datalogic

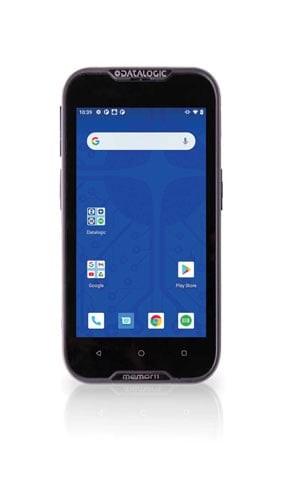

Datalogic Memor 11 Rugged PDA Terminal Wi-Fi+LTE, 4GB/32GB, 2D Imager, Android 11, Black

SKU:

944900009

Memor 11 Rugged Touch PDA. A compact, rugged full-touch terminal built around a 5-inch HD display and a Qualcomm octa-core processor, with Android 11, 4 GB RAM, and 32 GB of storage. It combines Wi-Fi 5, 4G LTE, Bluetooth 5.1, NFC, and USB-C connectivity with an integrated 2D imager featuring Datalogic Green Spot, while its black semi-rugged design adds IP65 protection, 1.5 m drop resistance, and a removable 4100 mAh hot-swappable battery.
Description
ico-plus ico-minus

The Datalogic Memor 11 Rugged PDA Terminal is a versatile handheld computer engineered for enterprise-grade mobile data capture in warehousing, logistics, retail and field service. Combining a 5-inch HD full-touch display with a high-performance octa-core platform, 4 GB of RAM and 32 GB of internal flash, the Memor 11 delivers responsive application performance and fast barcode capture through an integrated 2D imager with Datalogic Green Spot. Built to stay productive across shifts, available options include Wi‑Fi, Bluetooth, NFC, GPS and cellular connectivity, removable hot‑swappable batteries and IP65 protection—features that reduce downtime, simplify deployment and support reliable operation in demanding environments.

Key Features

  • Rugged design: IP65 ingress protection and industrial-grade construction support use in warehouse, field and retail environments for reduced device downtime.
  • Fast, reliable scanning: Integrated 2D imager with Green Spot provides accurate barcode capture and visual confirmation for high-throughput workflows.
  • Responsive performance: Octa-core processing with 4 GB RAM and 32 GB flash enables smooth handling of enterprise applications and multitasking.
  • Comprehensive connectivity: USB‑C, Bluetooth, Wi‑Fi (802.11ac/Wi‑Fi 5), NFC, GPS and optional 4G LTE deliver flexible network and peripheral options for mobile operations.
  • Field-ready power: 4100 mAh removable, hot‑swappable battery options extend runtime and simplify continuous operation during extended shifts.

Specifications

  • Brand: Datalogic
  • Product: Memor 11 Rugged PDA Terminal
  • Product Type: portable data collection device / mobile computer
  • Screen Size: 5 in
  • Screen Resolution: 1280 x 720 px
  • Touch Screen: Full touch
  • Processor Frequency: 2 GHz
  • CPU Cores: 8
  • RAM: 4 GB
  • Internal Storage (Flash): 32 GB
  • Operating System: Android 11
  • Google Mobile Services: Yes
  • Scanner Type / Imager: 2D imager (FFHE HP) with Green Spot
  • Rear Camera Resolution: 13 MP
  • Connectivity: USB-C, Bluetooth, Wi‑Fi (802.11ac / Wi‑Fi 5), NFC, GPS, optional 4G LTE
  • Micro SD Slot: Yes
  • Battery Capacity: 4100 mAh
  • Battery Removable / Hot‑Swappable: Yes
  • Charging Methods: Induction (wireless) and contact dock charging
  • Ingress Protection / Protection Rating: IP65
  • Drop Resistance Height: 1.5 m
  • Color Options: Black, White
  • Form Factor: Handheld / pistol-grip variants available

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Phone

  • IP Rating: IP65

  • Range: Standard Range

  • Connection: USB, Bluetooth

  • Camera: None

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Image Sensor Type Imager
Light Source LED
Google Mobile Services (GMS) Yes
Wireless Charging Yes
Sensor Type
  • Magnetometer
  • eCompass
  • Accelerometer
  • Gyroscope
  • Ambient Lighting
  • Proximity
Number of SIM Card Supported 1
SIM Size Supported Micro
Features
  • Oil Resistant
  • Green Spot Technology
  • Drop Resistant
  • Chemical Resistant
  • Push-to-talk
Drop Specification
  • Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot)
  • Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot)
  • Tested onto steel/ concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.
Illumination Type LED
Processor & Chipset
Processor Core Octa-core (8 Core)
Processor Speed 2 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Display & Graphics
Screen Size 5"
Screen Mode HD
Screen Resolution 720 x 1280
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 5
Keyboard/Keypad
Buttons & Keys
  • 2 Side Scan Keys
  • Power On/Off; Volume Up/ Down
  • 3 User Programmable Android Keys
Network & Communication
Wireless LAN Yes
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Near Field Communication (NFC) Yes
Cellular Network Supported
  • WCDMA
  • GSM
Cellular Data Connectivity Technology
  • 4G
  • 3G
  • 2G
  • 4G LTE
  • LTE Advanced
GPS Yes
Global Navigation Satellite System (GNSS) Supported BeiDou/Galileo/GLONASS
Interfaces/Ports
USB Yes
USB Type-C Yes
Software
Operating System Android 11
Upgradable Operating System Android 13
Power Description
Power Source Battery
Battery Information
Battery Capacity 4100 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.80 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Physical Characteristics
Product Color Black
Rugged Yes
Weight (With Battery) 10.05 oz
Miscellaneous
Package Contents
  • Memor 11 Handheld Terminal
  • Battery
  • s M11 944900004,
  • Single SlotDock 94A150095,
  • PowerSupply 94ACC0197,
  • RubberBoot 94ACC0193,
  • Attachable Scan Trigger Handle 94ACC0201
Application/Usage
  • Retail
  • Hospitality
  • Warehouse
  • Manufacturing
  • Asset Tracking
  • Field Sales/Service
  • Direct Store Delivery (DSD)
Ingress Protection (IP) Rating IP65
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document memor11.pdf 944900009 Product document memor11.pdf MOD-MEMOR-11
